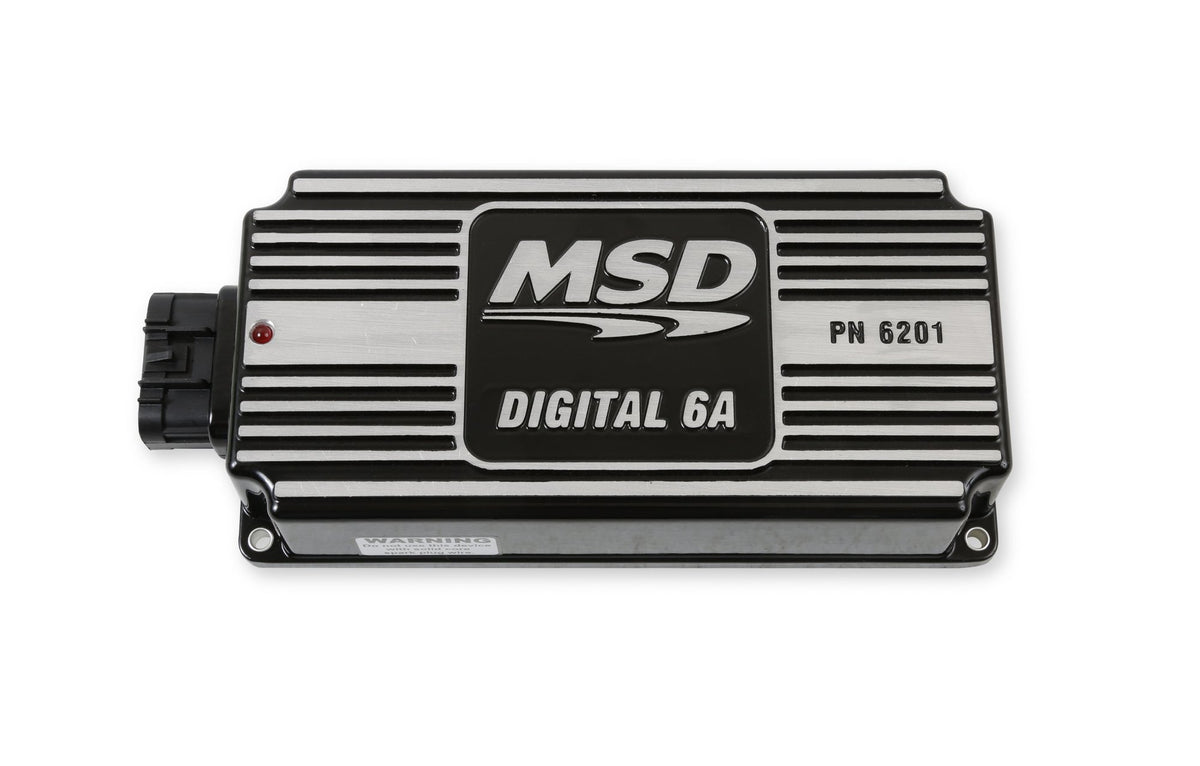

MSD Digital 6A Ignition Control - Black - 62013
$259.95
Skip to product information
The Digital 6A is a microprocessor controlled, capacitive discharge ignition that multi sparks up to 3,000 RPM providing easy starts, a clean, smooth idle and quick throttle response by optimizing your engines efficiency. Above 3,000 RPM, a single spark stays lit for up to 20⁰ of crankshaft rotation ensuring a complete burn of the air / fuel mixture in every cylinder.
A sealed, locking connector keeps the minimal wiring of the 6A tidy for a clean installation in all applications. It can be run on 4, 6 and 8 cylinder engines with a 12 volt negative ground electrical system and can be triggered with breaker points, an electronic amplifier or magnetic pickups.
If you're looking to improve the performance of your modified mill, we have the answer. Whether you've done a cam swap, or bolted on a carb, intake and headers… the 6A is a surefire way to harness all the ponies under your hood.
MSD Digital 6A Ignition Control - Black - 62013
$259.95
Features:
- Tach output wire
- Built-in LED for system checks
- .7 Amp per 1,000 RPM
- 15,000 RPM with 14.4 Volts
- 12-15 Volts, 7 Volt Start
- Smooth idle
- Compatible with 4, 6 or 8 cylinder engines
- Sealed, locking connector
- Full, capacitive discharge ignition power throughout the RPM range
- Easy starts
- Quick throttle response
Product Specifications:
- Product Details: Compatible with 4, 6, or 8 Cylinder Engines - Built-in LED for System Checks
- Bluetooth: No
- C.A.R.B. EO #: D-40-43
- Color: Black
- Connector Gender: Female
- Connector Quantity: 1
- Current Draw: 1000 RPM
- Features: No Rev Limiter
- Grade Type: Performance
- Height: 1.825 IN
- Ignition Box Type: Digital
- Ignition Type: Performance
- Length: 8 IN
- MAP Sensor: No
- Maximum RPM: 15,000 RPM
- Mount Type: Surface Mount
- Mounting Hardware Included: Yes
- Primary Voltage: 520-540
- Product Type: Digital 6A Ignition Control Box
- Rev Limiter: No
- Rotary Dials: No
- Secondary Voltage: 45,000
- Spark Energy (mJ per spark): 135-145
- Terminal Gender: Male
- Terminal Quantity: 12
- Voltage Required: 12-15
- Weight and Size: 8 x 4 x 1.825 in. - 1.7 lbs.
- Width: 4 IN
