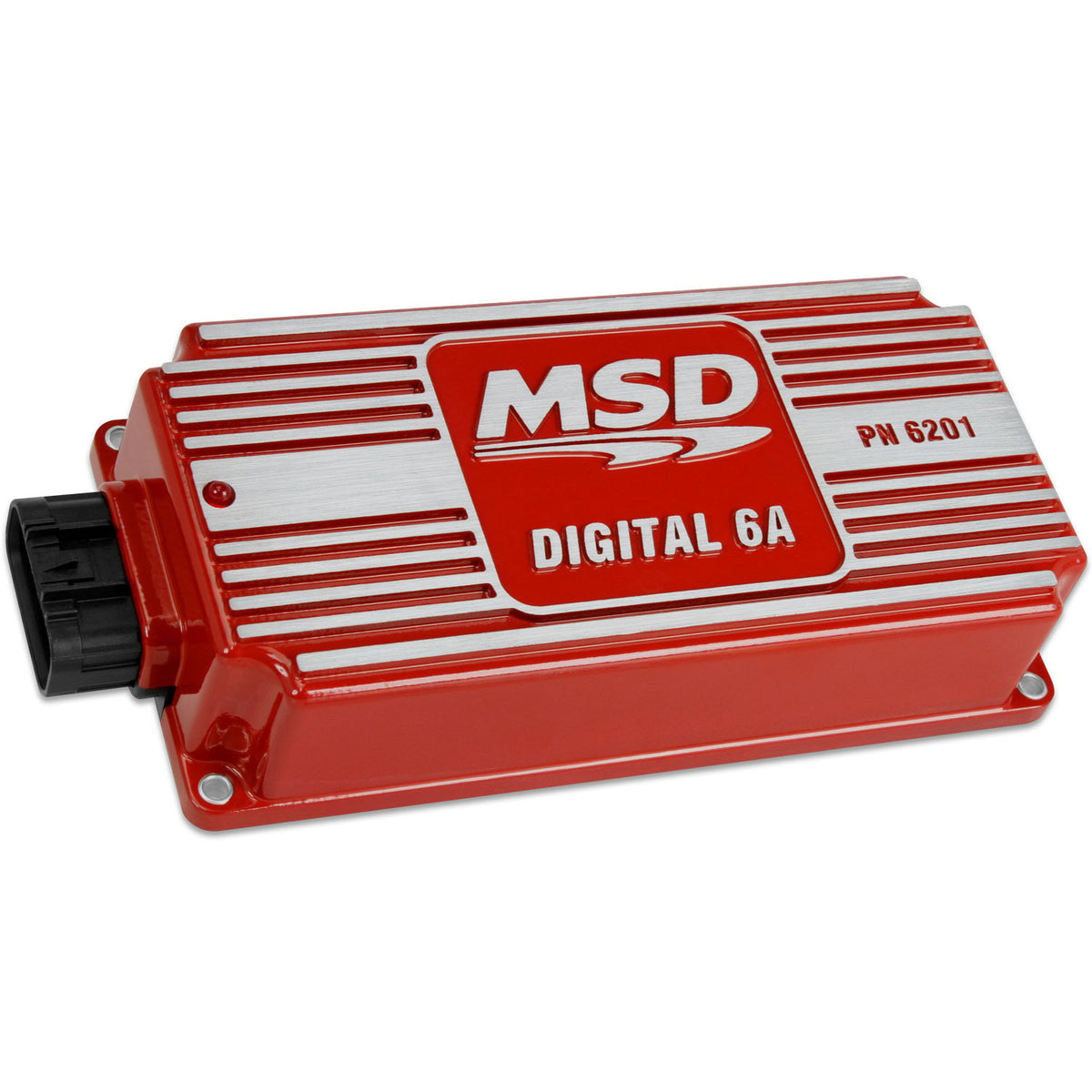

MSD Digital 6A Ignition Control - Red - 6201
$259.95
Skip to product information
A sealed, locking connector keeps the minimal wiring of the 6A tidy for a clean installation in all applications. It can be run on 4, 6 and 8 cylinder engines with a 12 volt negative ground electrical system and can be triggered with breaker points, an electronic amplifier or magnetic pickups.
The Digital 6A is a microprocessor controlled, capacitive discharge ignition that multi sparks up to 3,000 RPM providing easy starts, a clean, smooth idle and quick throttle response by optimizing your engines efficiency. Above 3,000 RPM, a single spark stays lit for up to 20⁰ of crankshaft rotation ensuring a complete burn of the air / fuel mixture in every cylinder.
If you're looking to improve the performance of your modified mill, we have the answer. Whether you've done a cam swap, or bolted on a carb, intake and headers… the 6A is a surefire way to harness all the ponies under your hood.
MSD Digital 6A Ignition Control - Red - 6201
$259.95
Features:
- Built-in LED for system checks
- Smooth Idle
- Sealed, locking connector
- Full, capacitive discharge ignition power throughout the RPM range
- Easy Starts
- Tach output wire
- .7 Amp per 1,000 RPM
- Compatible with 4, 6 or 8 - cylinder engines
- Quick throttle response
- 12-15 Volts, 7 Volt Start
- 15,000 RPM with 14.4 Volts
Product Specifications:
- Product Details: Compatible with 4, 6, or 8 Cylinder Engines - Built-in LED for System Checks
- Bluetooth: No
- C.A.R.B. EO #: D-40-43
- Color: Red
- Connector Gender: Female
- Connector Quantity: 1
- Current Draw: 1000 RPM
- Features: No Rev Limiter
- Grade Type: Performance
- Height: 1.825 IN
- Ignition Box Type: Digital
- Ignition Type: Performance
- Length: 8 IN
- MAP Sensor: No
- Maximum RPM: 15,000 RPM
- Mount Type: Surface Mount
- Mounting Hardware Included: Yes
- Primary Voltage: 520-540
- Product Type: Digital 6A Ignition Control Box
- Rev Limiter: No
- Rotary Dials: No
- Secondary Voltage: 45,000
- Spark Energy (mJ per spark): 135-145
- Terminal Gender: Male
- Terminal Quantity: 12
- Voltage Required: 12-15
- Weight and Size: 8 x 4 x 1.825 in. - 1.7 lbs.
- Width: 4 IN
