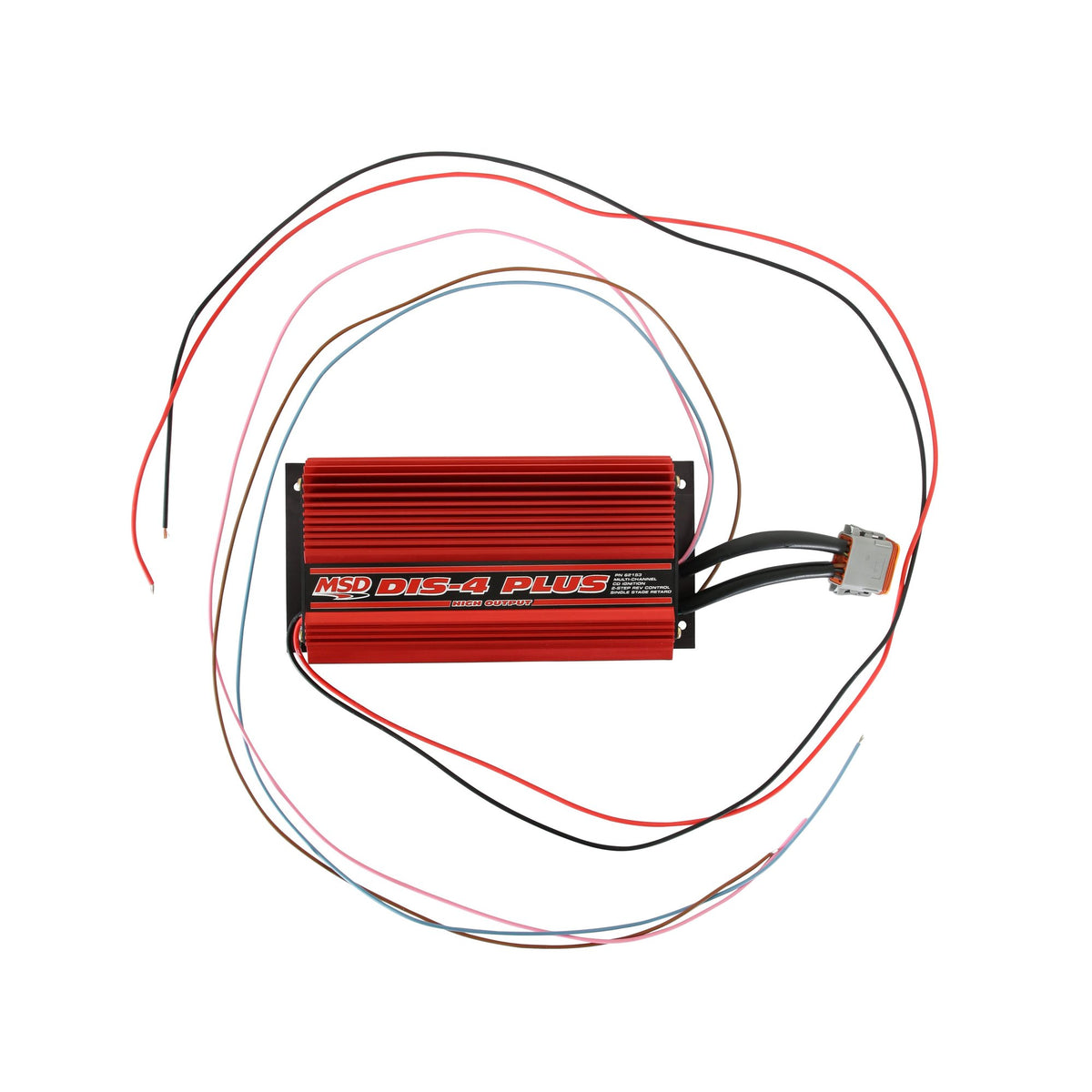

MSD DIS-4 Plus High Output - 62153
$1,299.95
Skip to product information
For full bred drag race engines running high boost pressures from turbos, blowers or nitrous we offer a Higher Output version of the DIS Ignition Control. The DIS-4 Plus HO Ignition produces an incredible 170 millijoules of spark energy with 470 primary volts. This increased output will light up fuel mixtures even under extreme cylinder pressures.
MSD DIS-4 Plus High Output - 62153
$1,299.95
Features:
- Two adjustable Rev Limits
- 10-18 Volts, Negative Ground
- Adjustable retard stage
- Ignition Interrupt Circuit
- Diagnostic LED
- 14,000 RPM with 14.4 Volts
- 10 Amps at 10,000 RPM
Product Specifications:
- Product Details: High output distributorless ignition. 2, 3 or 4-coil pack.
- Color: Black
- Connector Gender: Male
- Connector Quantity: 1
- Current Draw: 10000 RPM
- Grade Type: Performance
- Height: 2.2 IN
- Ignition Type: Performance
- Length: 9.5 IN
- Maximum RPM: 14,000 RPM
- Mount Type: Surface Mount
- Mounting Hardware Included: Yes
- Primary Voltage: 460-480
- Product Type: Ignition
- Secondary Voltage: 43,000
- Spark Energy (mJ per spark): 170
- Spark Series Duration: 20 Degree Crankshaft Rotation
- Terminal Gender: Male Female
- Terminal Quantity: 5
- Voltage Required: 10-18
- Weight and Size: 3 lbs., 9.5L x 4.5W x 2.2H
- Width: 4.5 IN
