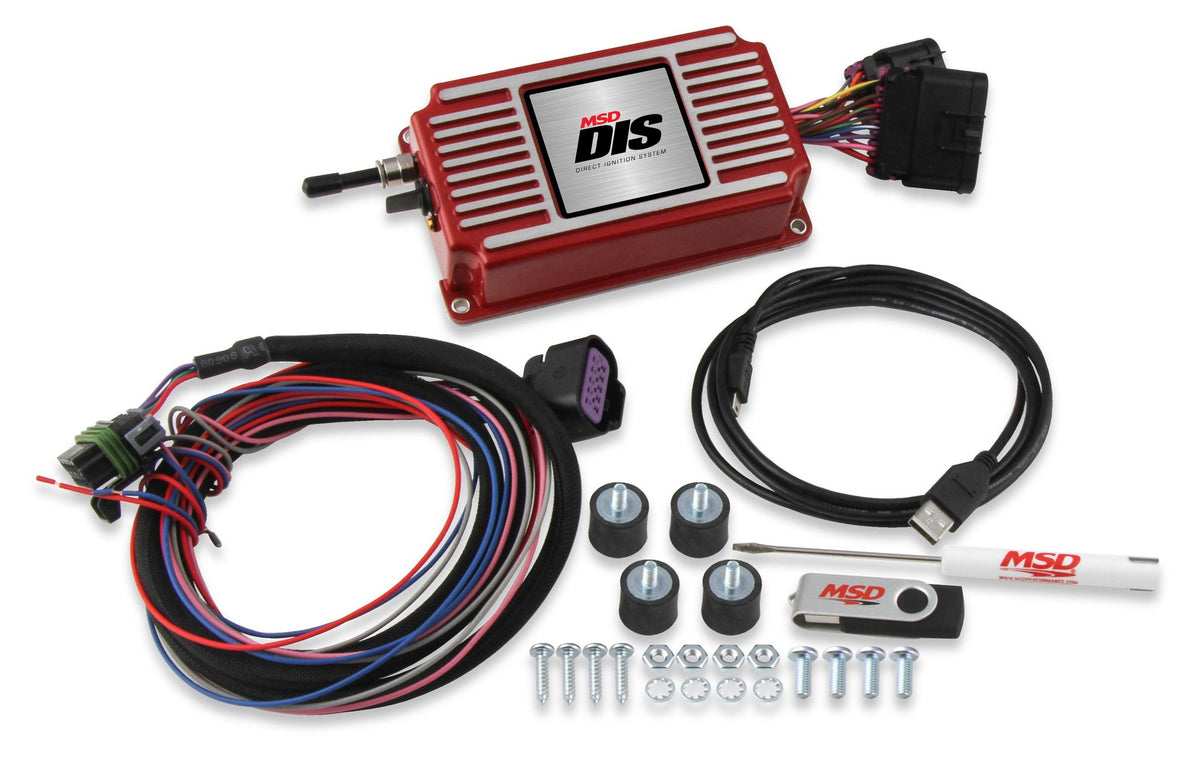

MSD DIS Direct Ignition System Control Box - Red - 6015MSD
$681.95
Skip to product information
Timing is digitally controlled ensuring precision accuracy at all RPM's and every firing. The DIS has advanced timing and rev-limiter functions for racers such as individual cylinder timing; timing retards for boosted and nitrous applications, a two-step rev-limiter, and launch control to get your car out of the hole and even data acquisition to keep everything in check.
Modern Firepower for your classic - the MSD Direct Ignition System, or DIS, converts an early style engine from a conventional distributor and single coil setup to eight individual coils. One coil per cylinder means no moving parts in a distributor to control the timing and no cap and rotor to wear-out.
Convert your early Chevy, Ford or Mopar by replacing the worn out distributor with an MSD Pro-Billet Dual Sync Distributor and blank cap. The Dual Sync plugs directly into the 6015MSD DIS Ignition control providing the cam and crank signals. The DIS then plugs into a set of GM smart coils, a.k.a. LS coils, and just like that, your early bullet has modern firepower.
MSD DIS Direct Ignition System Control Box - Red - 6015MSD
$681.95
Features:
- Preprogrammed timing maps
- Single Timing Step Retard ideal for pulling timing for nitrous applications
- Built-in 2.5 bar Manifold Absolute Pressure (MAP) sensor for boosted applications
- Programmable Max Rev and Launch RPM limiters provide engine protection
- Optional temperature sensor input to control timing based on temperature
- Consistent holeshots thanks to a Programmable Launch Timing Retard
- Easily programmable through a Mini-USB communication port
- Individual Cylinder Timing (ICT) allows precise tuning
- Data acquisition allows you to keep an eye on all aspects of the ignition
- Fully Programmable 2D and 3D Timing maps provide complete timing control
- Easily convert to a Coil-Per-Plug ignition system
- Fully potted electronics and sealed connectors for maximum durability
- Complete kits with all required components available
Product Specifications:
- Product Details: GM/Ford/Dodge V8 Using MSD Dual Sync Distributor
- Color: Red
- Connector Gender: Male
- Connector Quantity: 2
- Grade Type: Performance
- Height: 4.6 IN
- Ignition Type: Performance
- Length: 8.4 IN
- Mount Type: Surface Mount
- Mounting Hardware Included: Yes
- Product Type: Ignition
- Terminal Gender: Male
- Voltage Required: 12
- Width: 6 IN
