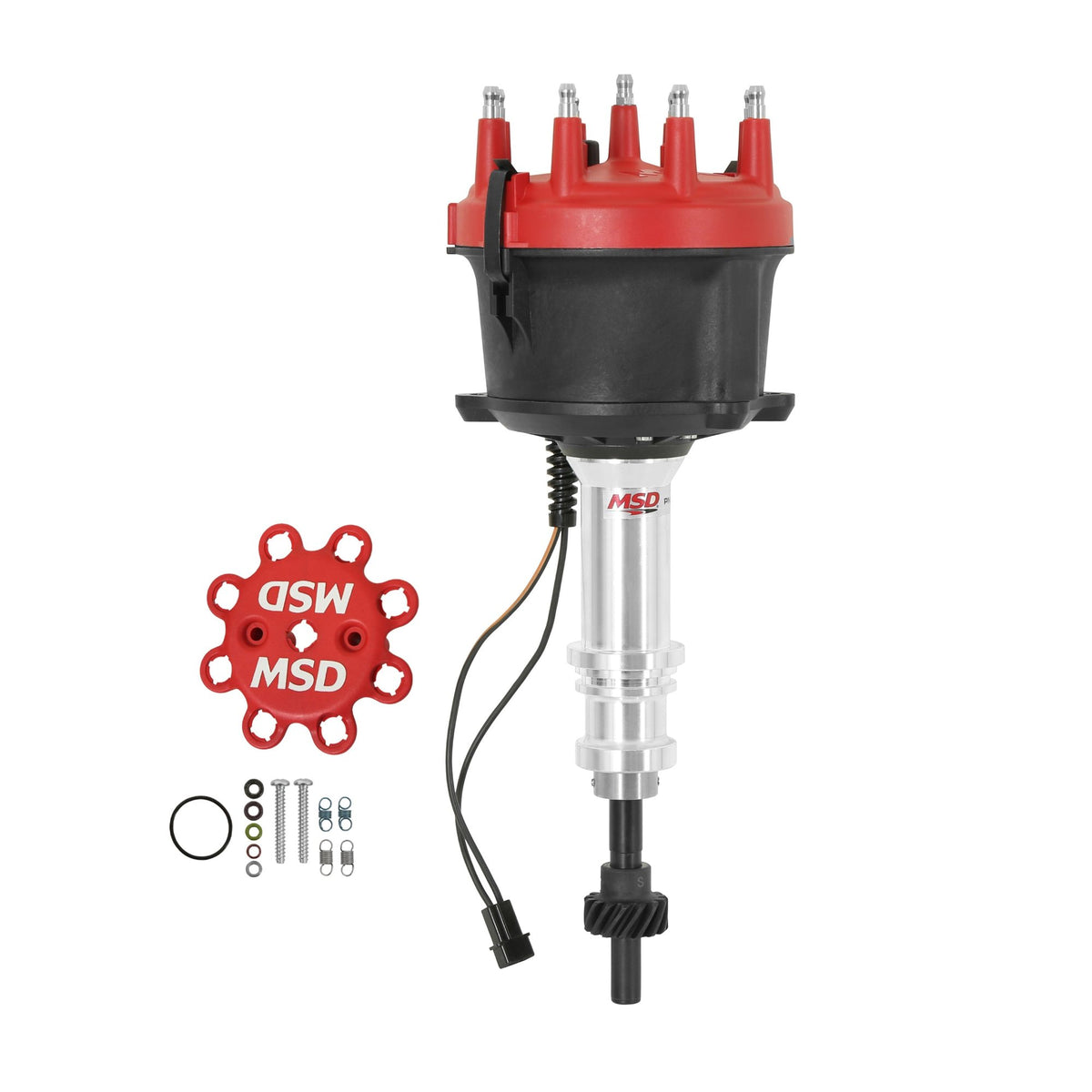

MSD Ford 289/302 Billet Distributor - 8598
$478.95
Skip to product information
The steel shaft that spins the advance and reluctor receives a friction reducing coating plus is guided by a sealed ball bearing and long sintered bushing. This combination provides stable timing signals and spark delivery at any rpm. Triggering chores are handled by MSD's race proven, maintenance-free magnetic pick-up.
For Ford enthusiasts that are serious about performance! Just under the brass terminals of the MSD cap and rotor is an easy-to-adjust mechanical advance assembly. The assembly is fine blanked from chro-moly steel, TIG-welded for strength plus receives a QPQ coating. The precision weights glide on nylon bushings for smooth advancement and different springs and stop bushings are supplied so a variety of advance curves can be tuned.
MSD Ford 289/302 Billet Distributor - 8598
$478.95
Features:
- Nylon pads ensure smooth operation of the advance weights
- Advance weight pins are staked and tig welded to the plate
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing
- Must be used with an MSD Ignition Control
- Mechanical advance assembly can be locked out for crank trigger systems
- CNC machined billet aluminum housing and Dupont Rynite base
- No CARB Exemption Order Number
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Supplied with Cap-A-Dapt and rotor (accepts MSD socket style caps)
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
Product Specifications:
- Product Details: Fits 289, 302 with steel gear for hydraulic roller cams. Must be used with an MSD 6, 7 or 8-series ignition.
- Color: Red
- Distributor Cap Included: Yes
- Distributor Type: Magnetic Pickup
- Engine: Ford Small Block
- Gear: Steel
- Gear Material: Steel Melonized QPQ Coated
- Grade Type: Performance
- Ignition Box Required: Yes
- Ignition Coil Included: No
- Ignition Rotor Included: Yes
- Part Type: Distributor
- Product Type: Distributor
- Quantity: 1
