MSD High Pressure Electric Fuel Pump - 2225
$176.95
Skip to product information

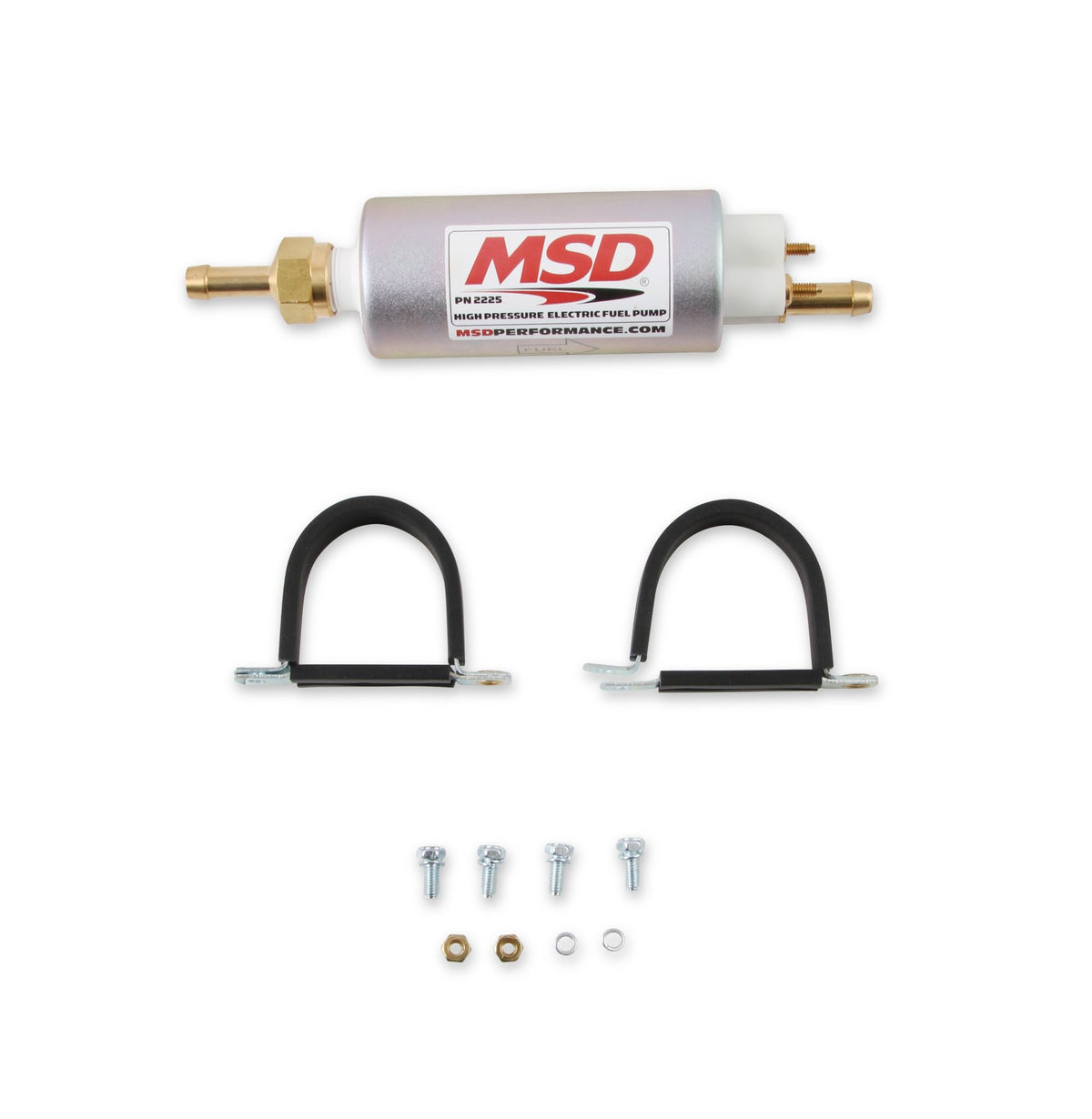

This high pressure and high flow Fuel Pump features a roller vane pump mechanism which is extremely resistant to clogging and jamming. The pump mounts in-line (out of the fuel tank) with two supplied cushioned clamps for a quick and sturdy installation. The nipple inlet and outlet are 3/8". The wire terminals feature brass studs for secure connections. Made in the USA, the pump is ideal for use as a "booster" for nitrous oxide applications, or as a stand alone pump for multi-port EFI systems on engines up to approximately 525 HP. Capable of 45 GPH at 60 PSI.
MSD High Pressure Electric Fuel Pump - 2225
$176.95
Features:
- 3/8" Hose nipple outlet
- 45 GPH at 60 PSI
- 3/8" Hose nipple inlet
- 12 Amps at 14 Volts
Product Specifications:
- Product Details: Multiport EFI systems require a stable fuel supply to maintain best performance throughout the engine's rpm range.
- Application: Automotive
- Average Flow Rating: 45 GPH
- Color: Silver
- Finish: Zinc
- Free Flow GPH: 45
- Free Flow LPH: 170
- Fuel Delivery Type: Fuel Injection | Carburetor
- Fuel Sending Unit Included: No
- Gasket Or Seal Included: No
- Grade Type: Performance
- Inlet Fitting Thread Size: 3/8 IN
- Inlet Type: NPT
- Maximum Amperage Draw: 12 68
- Mounting Hardware Included: No
- Outlet Type: NPT
- Part Type: Electric Fuel Pump
- Product Type: Fuel Pump
- Strainer Included: No
- Terminal Quantity: 2
- Universal Or Specific Fit: Universal
- Wiring Harness Included: No
