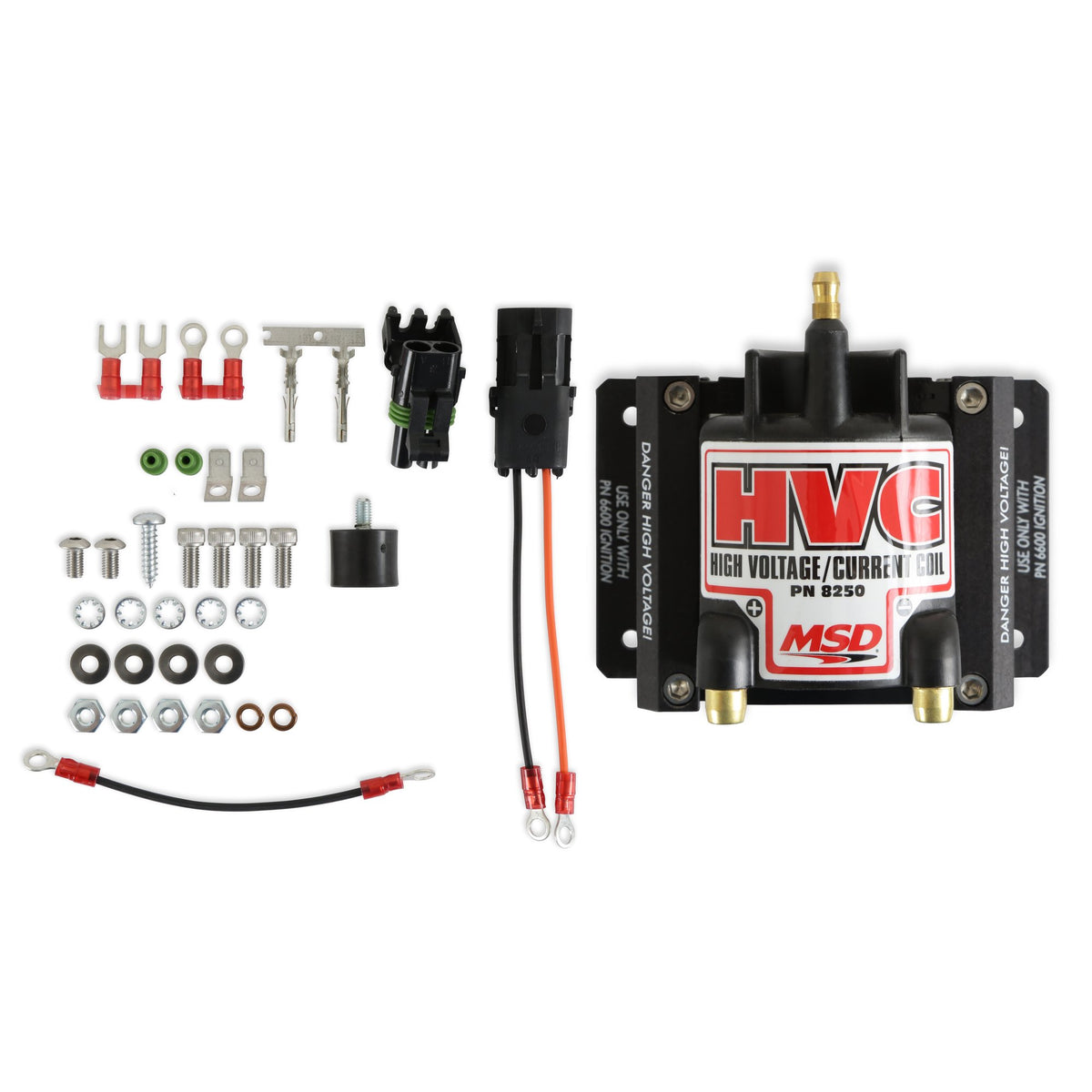

MSD Ignition Coil - 6 HVC - 8250
$231.95
Skip to product information
The E-Core design of the HVC Coil is more efficient in producing more output with less loss.
aftermarket ignition.
The HVC Coil is designed to be used exclusively with the MSD 6 HVC Series Ignition Controls (#6631, #6632). This Coil is not recommended for use with any other MSD Ignition Control or similar
MSD Ignition Coil - 6 HVC - 8250
$231.95
Features:
- Massive laminations and windings are engineered for less energy loss
- Delivers high voltage to ionize the plug gap while the spark glows with high current
- E-Core design produces more voltage and current while running 50% cooler than canister coils
Product Specifications:
- Product Details: Designed exclusively for the HVC Professional Racing Ignition Control (#6631, #6632)
- Color: Black
- Inductance (mH): 3
- Maximum Voltage: 34,000
- Part Type: Ignition Coil
- Peak Current: 600 4K
- Primary Resistance: 0.07 82
- Product Type: Ignition Coils
- Secondary Resistance: 360 82
- Spark duration: 0.2 MESC
- Turns Ratio: 4.17
- Type: Circle Track
- Weight: 3.75 LB
