MSD Ignition Coil - Blaster Series - HVC-2 - Blue - 8253
$371.95
Skip to product information
The Blaster HVC coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from a special Dupont Rynite material and wound specifically to produce the most current possible with incredible voltage and lightning quick rise time.
MSD Ignition Coil - Blaster Series - HVC-2 - Blue - 8253
$371.95
Features:

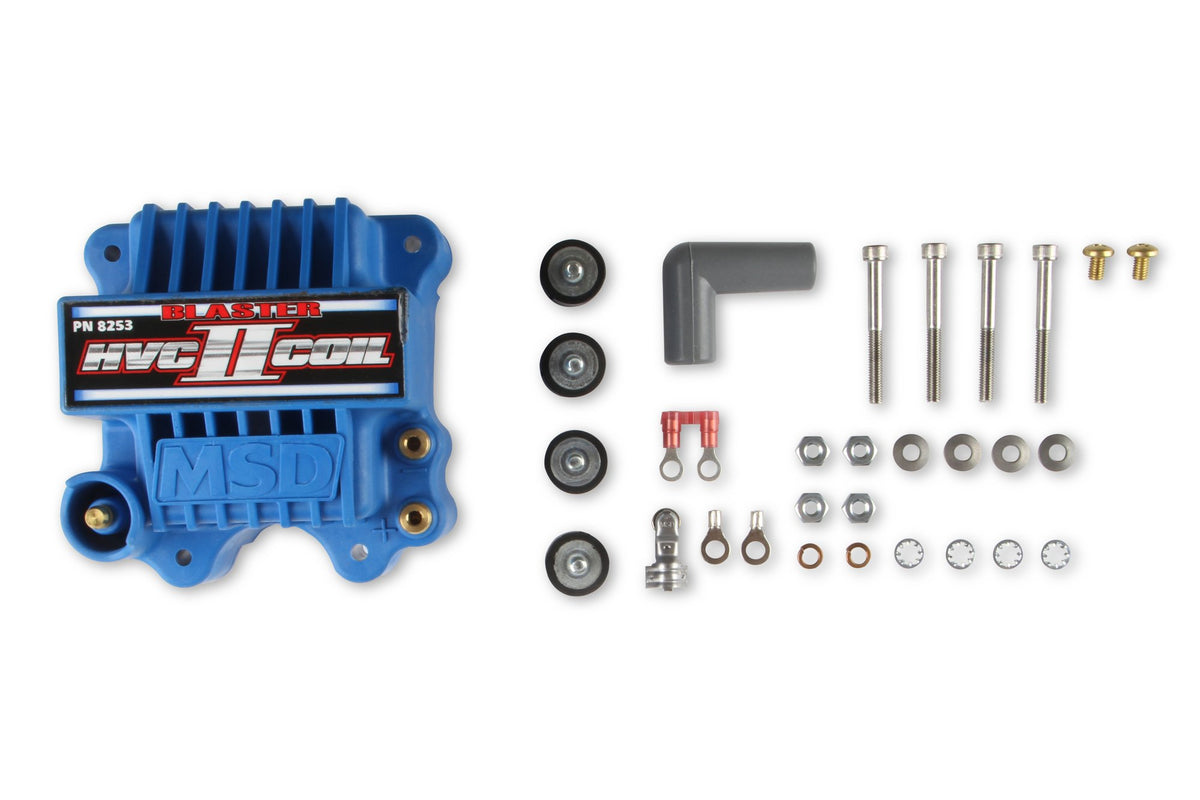

- Supplied with rubber shock mounts
- No CARB Exemption Order Number
- Dupont Rynite housing with isolated tower and brass primary terminals
- New U-core winding design produces more voltage and current
- Windings are encased in fracture resistant compound for vibration resistance
- 100:1 turns ratio and lower primary resistance produce high voltage output
- Designed for high rpm, long duration applications using MSD 6 Series Ignitions
Product Specifications:
- Product Details: Universal - Add To Any MSD 6-Series Ignition
- Inductance (mH): 3.5
- Maximum Voltage: 44,000
- Part Type: Ignition Coil
- Peak Current: 450 4K
- Primary Resistance: 0.16 82
- Product Type: Ignition Coil
- Secondary Resistance: 630 82
- Spark duration: 0.45 MESC
- Turns Ratio: 4.17
- Weight: 3.75 LB
