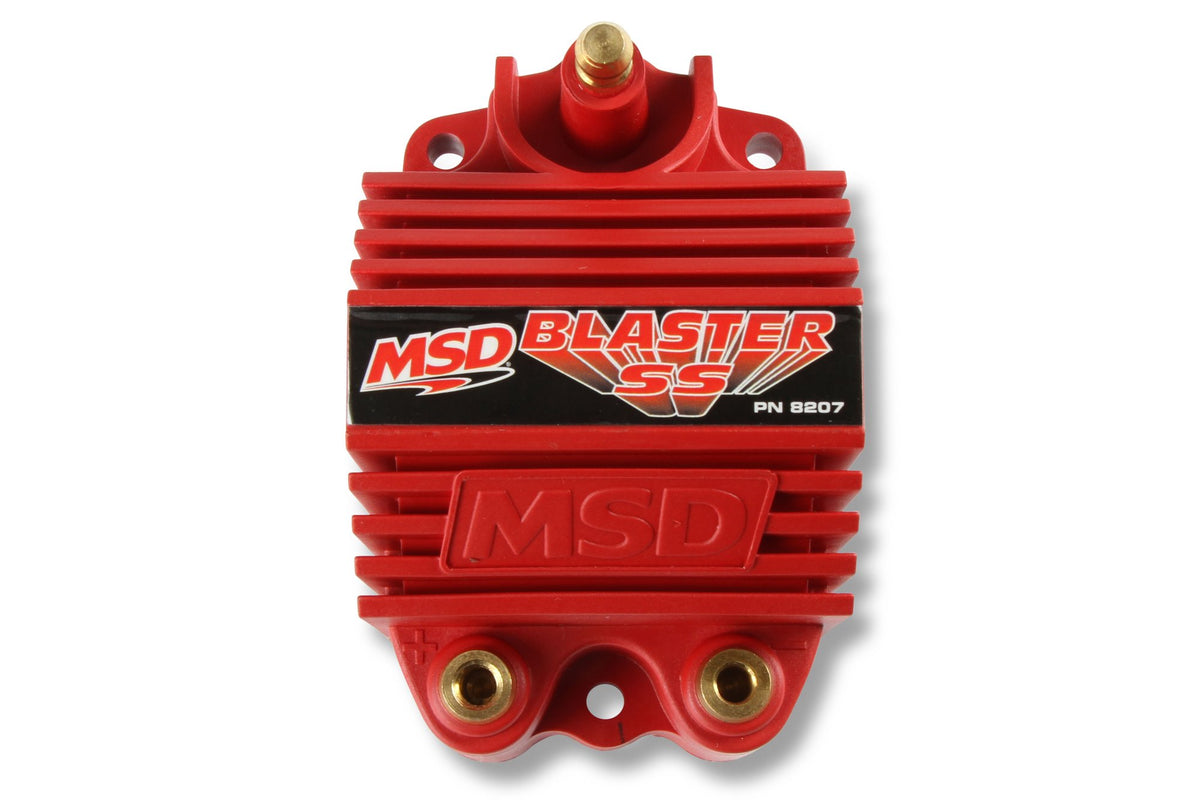

MSD Ignition Coil - Blaster SS - Red - 8207
$79.95
Skip to product information
Note: If installing the Blaster SS Coil to a points distributor or a non-current limiting ignition system without an MSD Ignition, a 0.8 ohm ballast resistor is required (MSD PN 8214). The resistor should wire in series along with any factory resistors on the positive coil wire.
Don't let the compact size of the Blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 Series Ignition, the Blaster SS produces 300 milliamps of current and maximum voltage output of 40,000 volts!
MSD Ignition Coil - Blaster SS - Red - 8207
$79.95
Features:
- Premium epoxy-filled, compact performance Blaster SS ignition coil from MSD Ignition!
- Compatible with MSD 6 & 7 series ignitions and electronic ignitions
- Tough, rigid housing with a tall tower and brass primary terminals
- 70:1 turns ratio and lower primary resistance produce high voltage output
- Efficient winding design and assembly creates a compact housing with powerful punch
- Primary and secondary windings are encased in Ciba polyurethane
Product Specifications:
- Product Details: Universal - Add To Any MSD 6-Series Ignition
- Application: Universal
- Brackets Included: No
- C.A.R.B. EO #: D-40-37
- Coil Type: Blaster
- Coil Wire Included: No
- Color: Red
- Connector Shape: Rectangular Pyramid
- Engine: Universal V8
- Grade Type: Performance
- Inductance (mH): 6.9
- Maximum Voltage: 40,000
- Mount Type: Surface
- Mounting Bracket Included: No
- Mounting Hardware Included: Yes
- Part Type: Ignition Coil
- Peak Current: 300 4K
- Primary Resistance: 0.355 82
- Product Type: Ignition Coil
- Quantity: 1
- Secondary Resistance: 4.4K 82
- Spark duration: 0.22 MESC
- Turns Ratio: 2.92
- Universal Or Specific Fit: Universal
- Weight: 1.08 LB
