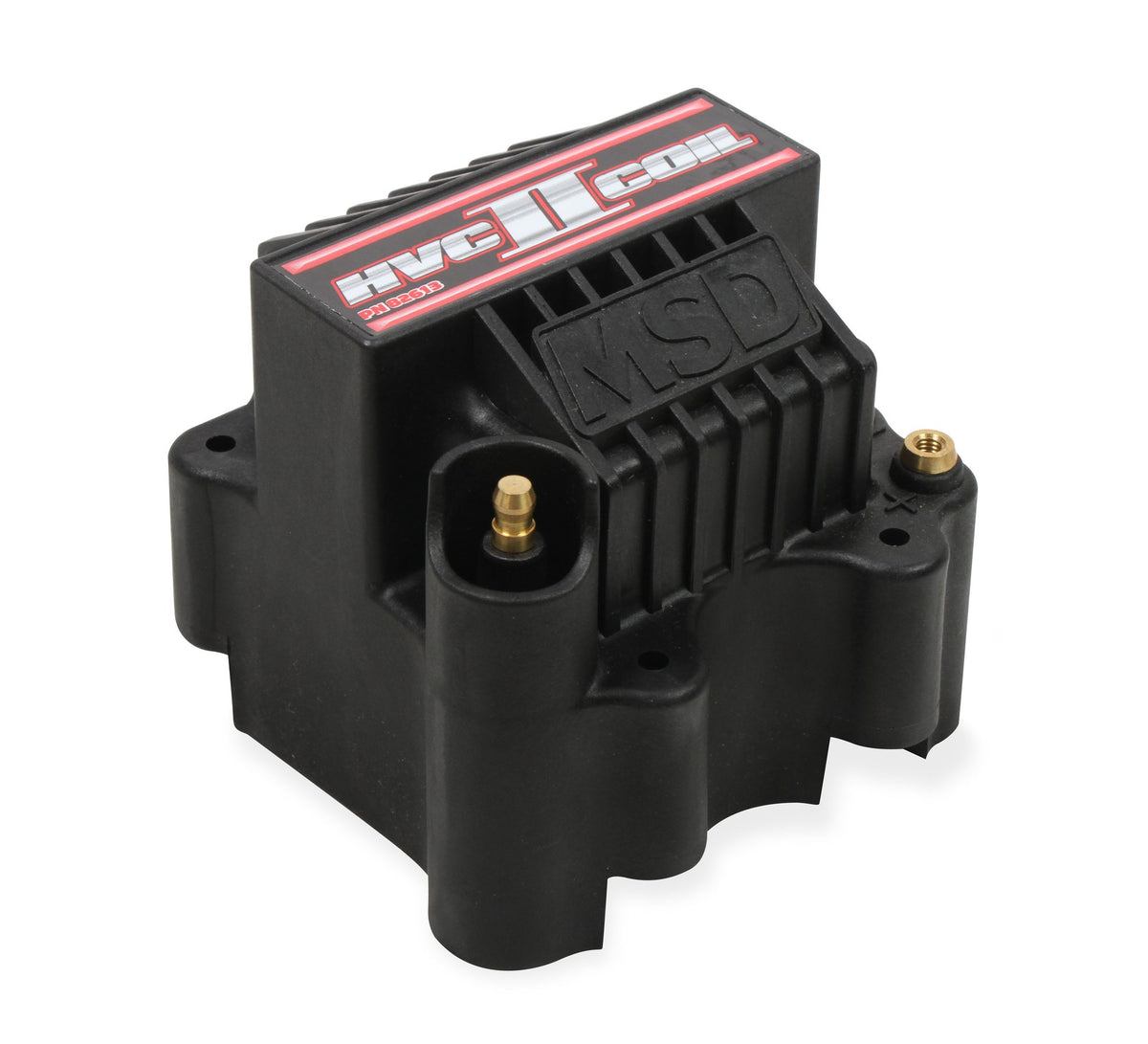

MSD Ignition Coil - HVC-2 Series - Black - 82613
$355.95
Skip to product information
The HVC II Coil is completely built in-house so our engineers have exclusive control over their performance and quality. The Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting edge winding material that has an improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning quick rise time and lengthy spark duration.
MSD Ignition Coil - HVC-2 Series - Black - 82613
$355.95
Features:
- Tough, rigid housing with isolated tower and brass primary terminals
- Designed for racing applications with an MSD 7 or 8 Series Ignition Control
- Supplied with mounting hardware and rubber shock mounts
- U-Core winding design produces more voltage and current
- 70:1 turns ratio and lower primary resistant compound for vibration resistance
Product Specifications:
- Product Details: Universal - Use with MSD 7/8/10 Series Ignition Control
- Color: Black
- Inductance (mH): 0.25
- Maximum Voltage: 45,000
- Part Type: Ignition Coil
- Peak Current: 2 68
- Primary Resistance: 0.016 82
- Product Type: Coil
- Secondary Resistance: 30 82
- Spark duration: 0.15 MESC
- Turns Ratio: 2.92
- Type: Drag Race / Long Duration Use
- Weight: 3.75 LB
