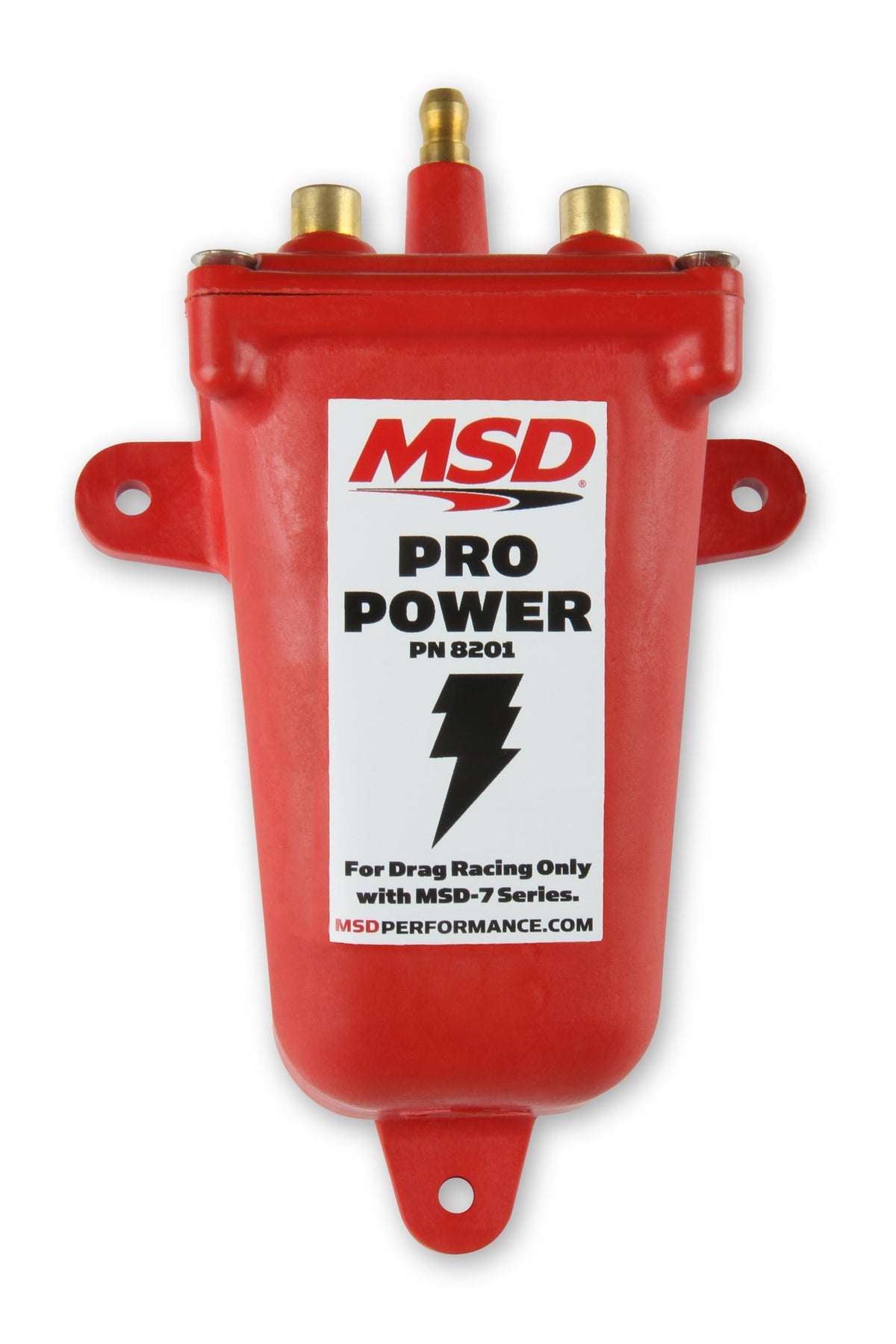

MSD Ignition Coil - Pro Power Series - Red - 8201
$219.95
Skip to product information
This Coil is designed for use with an MSD 7AL-2 (#7220), 7AL-2 Plus (#7222), 7AL-3 (#7230), and MSD 8 (7805) Ignitions only.
The special windings of the Pro Power Coil have extremely low resistance to produce the highest voltage possible with plenty of spark energy when used with an MSD 7 or 8 Series Ignition Control. The MSD Pro Power Coil is a great choice for short-duration applications such as drag racing.
Sold Individually.
MSD Ignition Coil - Pro Power Series - Red - 8201
$219.95
Features:
- For MSD 7 and 8 ignitions only, not for use on street vehicles
- Extremely low primary resistance
- Supplied with rubber shock mounts
- Housing is molded from a durable and high dielectric polyester
- High voltage coil designed for short duration applications only
- Primary and secondary windings are encased in Ciba polyurethane for vibration protection
Product Specifications:
- Product Details: Use with MSD 7 and 8 Series Ignitions ONLY - Short-Duration Applications
- Color: Red
- Inductance (mH): 1
- Maximum Voltage: 43,000
- Part Type: Ignition Coil
- Peak Current: 800 4K
- Primary Resistance: 0.03 82
- Product Type: Ignition Coil
- Secondary Resistance: 240 82
- Spark duration: 0.18 MESC
- Turns Ratio: 4.17
- Type: Drag Race / Short Duration Use
