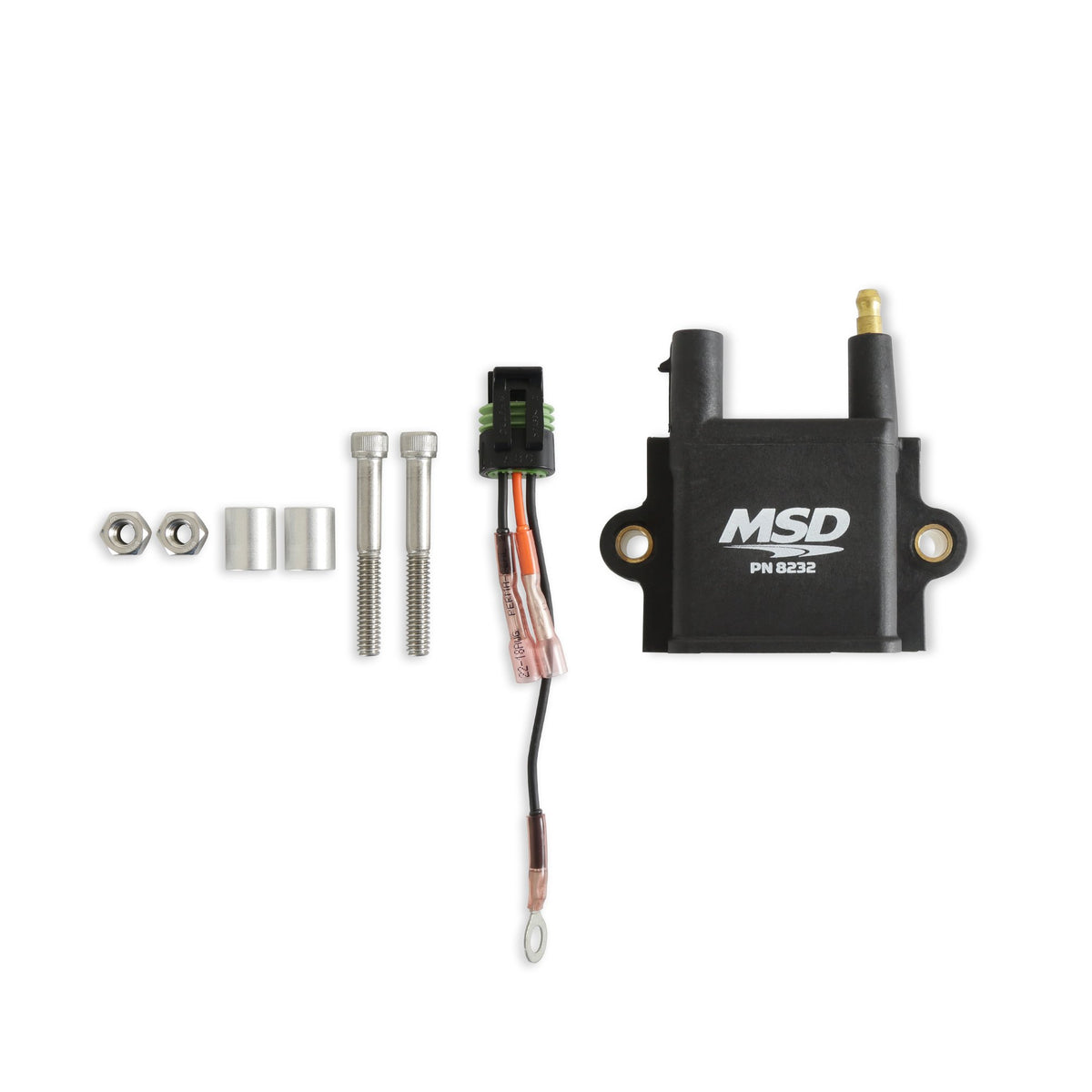

MSD Ignition Coil (Single Tower) - CPC Ignition Control - Black - Individual - 8232
$105.95
Skip to product information
For performance applications with multi-channel coil drivers, this Single Tower Blaster Coil is a great choice. The Coil will also top off your MSD DIS-HO Ignition system when it is set up for a coil-per-cylinder ignition system.
MSD Ignition Coil (Single Tower) - CPC Ignition Control - Black - Individual - 8232
$105.95
Features:
- 85:1 turns ratio and lower primary resistance produce high voltage output
- Designed exclusively for the MSD CPC Ignition Control
- No CARB Exemption Order Number
- Dupont Rynite housing with a tall tower and isolated primary terminals
Product Specifications:
- Product Details: The coils low resistance and quick rise time make it ideal for high revving, multi-coil performance systems.
- Bolt Spacing: 2.90 IN
- Color: Black
- Inductance (mH): 3.7
- Maximum Voltage: 43,000
- Peak Current: 800 4K
- Primary Resistance: 0.09 82
- Product Type: Ignition Coils
- Secondary Resistance: 988 82
- Spark duration: 0.38 MESC
- Spark Energy (mJ per spark): 195
- Turns Ratio: 3.54
- Type: Drag Race / Short Duration Use
