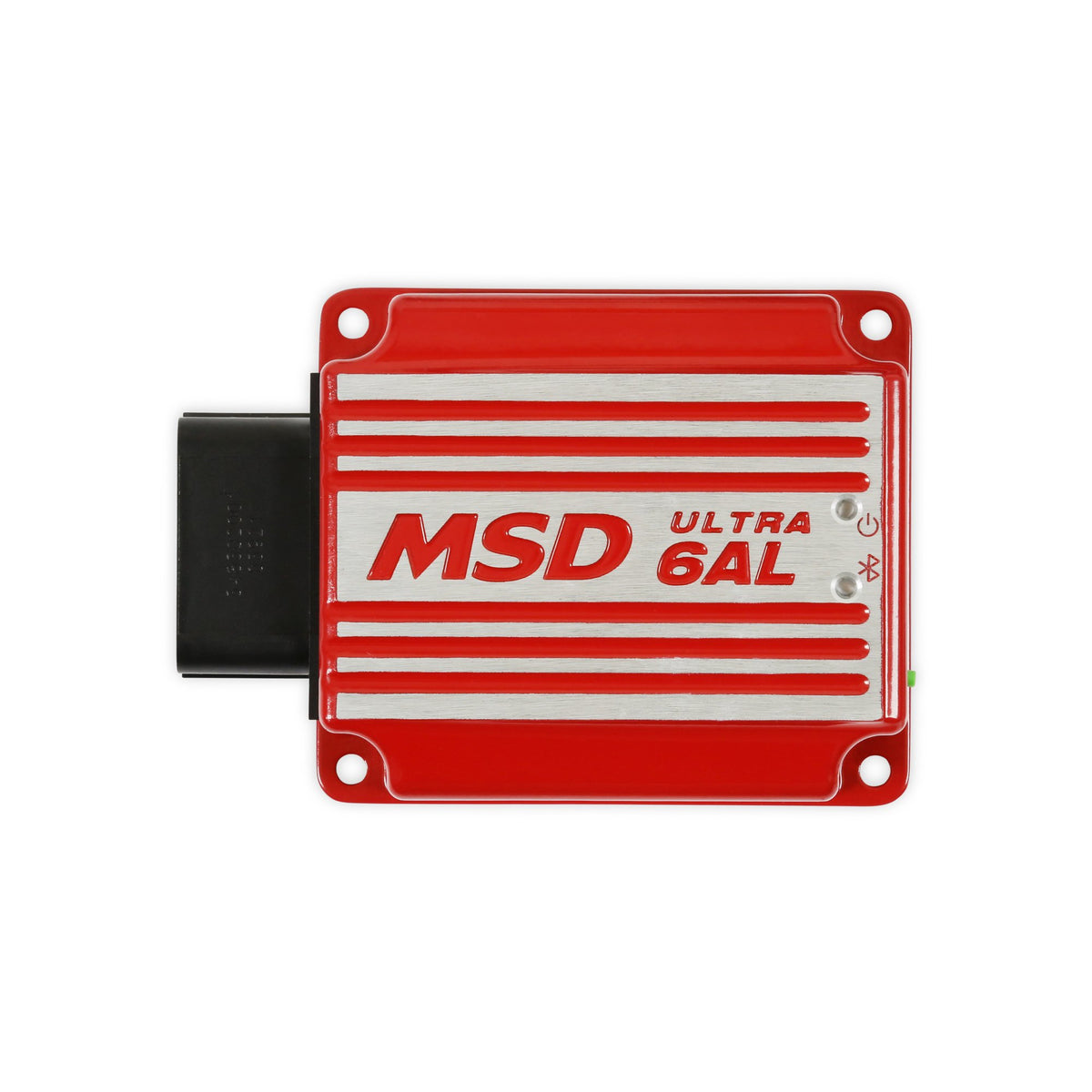

MSD Ultra 6AL Ignition Control - Red - 6423
$362.95
Skip to product information
The Ultra 6AL greatly expands on the capabilities of the 6-series line with three rev limiters (Launch, Burnout, and Step Retard activation) and is wirelessly controlled from a smart phone via the "MSD Ultra 6AL" app. A Programmable Step Retard (up to 30 degrees) is available for: On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation. High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation. Mobile app available settings include Cylinder selection, Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value, Start retard value.
The new ground-breaking Ultra 6AL delivers full MSD power in a compact, feature dense, and lighter package!
MSD Ultra 6AL Ignition Control - Red - 6423
$362.95
Features:
- High conversion efficiency ensures minimal heat generation and maximum spark energy output with less current draw from the battery - (Highly efficient Ignition, minimum heat and max spark energy with less current draw)
- Tach Output
- MSD CAN communication for easy connectivity to MSDView using a CAN MSD Hub and Power Grid USB or CAN-USB Bridge 89982 product
- Increase spark series duration lasts for 18 of crankshaft rotation
- 15,000 RPM with 14.4 Volts
- Mobile app available settings: Cylinder selection, Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value, Start retard value
- 12-15 Volts, 7 Volt Start
- 0.8 Amps per 1,000 RPM
- The Ultra 6AL greatly expands on the capabilities of the 6-series line and is wirelessly controlled from a smart phone via the “MSD Ultra 6AL” app
- High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation
- Powerful capacitive discharge of multiple sparks improves performance - quickens throttle response & improves starting
- Alerts and monitors available
- Operates on most 7 to 28 volt electrical systems
- Programmable Step Retard (up to 30 degrees): On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation
- Built-in tri-step RPM rev limit capability - Launch, Burnout, and Step Retard activation
- Fully protected against an open coil, shorted coil & open load
- Programmable Start Retard: 0, 10, 20 degrees
- High RPM operation and maximum output using the Blaster HVC, PN 8252 or HVC II, PN 8253
- Connects to points, magnetic pickups, and Hall/Crank Input distributors on 4,6, and 8-cylinder engines
- Consistently high spark energy of 135mJ to 150mJ for every firing, from idle to redline RPM
Product Specifications:
- Product Details: Compact design - full MSD power. Bluetooth service only available within the USA and Canada.
- Bluetooth: Yes
- Color: Red
- Connector Gender: Female
- Connector Quantity: 1
- Current Draw: 1000 RPM
- Features: Bluetooth, Rev Limiter
- Grade Type: Performance
- Height: 3.05 IN
- Ignition Box Type: Ultra
- Ignition Type: Performance
- Length: 10.95 IN
- MAP Sensor: No
- Maximum RPM: 15,000 RPM
- Mount Type: Surface Mount
- Mounting Hardware Included: Yes
- Primary Voltage: 520-540
- Product Type: Digital 6AL Ignition Control Box w/Rev Control
- Rev Limiter: Yes
- Rotary Dials: No
- Secondary Voltage: 45,000
- Spark Energy (mJ per spark): 135 - 150
- Terminal Gender: Male
- Terminal Quantity: 20
- Voltage Required: 12-15
- Weight and Size: 3.3 x 3.8 - 344 grams
- Width: 10.1 IN
