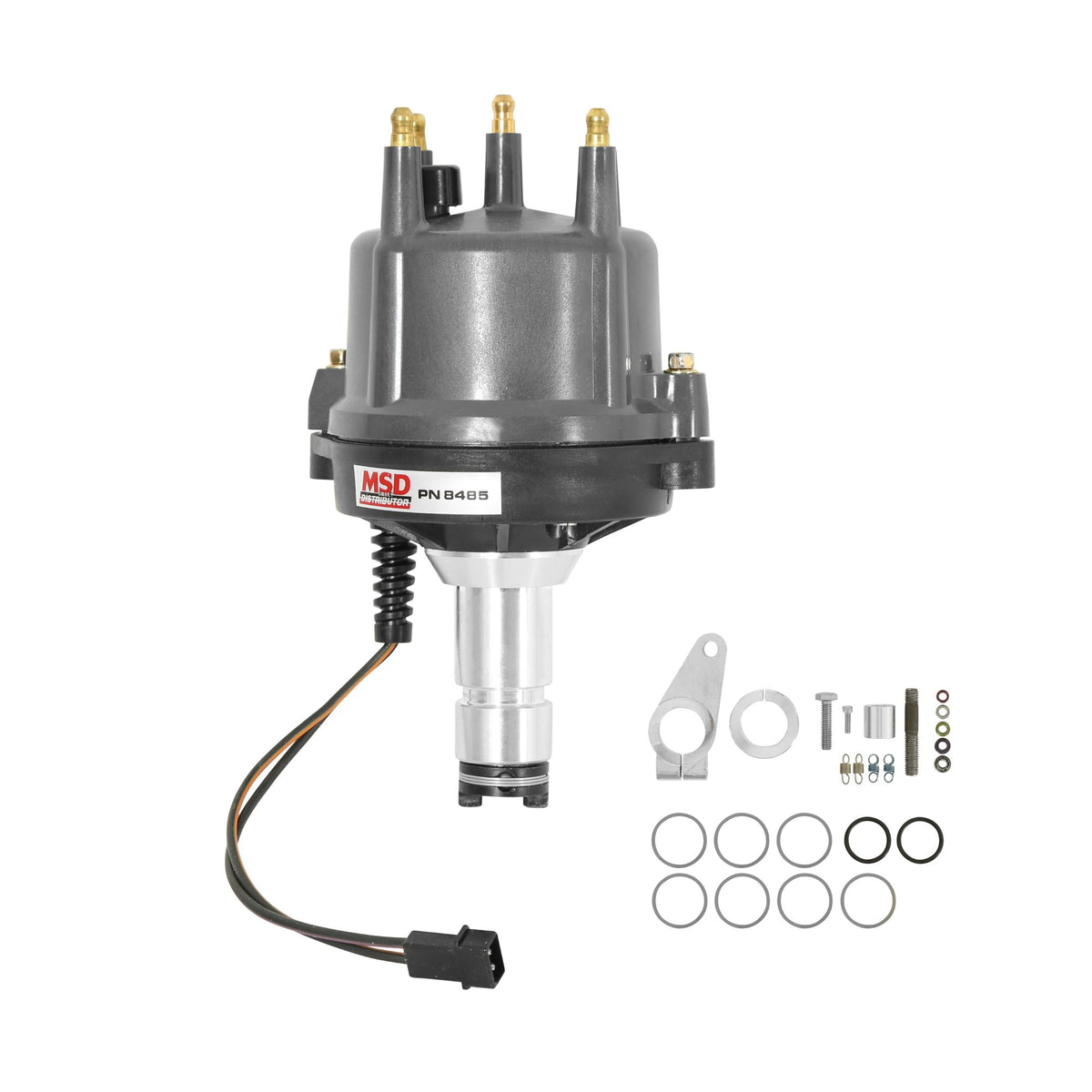

MSD VW Billet Distributor - 8485
$499.95
Skip to product information
Using technology gained from building distributors for off-road and NASCAR racers, MSD offers this Billet Distributor for the popular Type 1 engine.
A maintenance-free magnetic pickup is responsible for triggering the MSD Ignition. This pickup is accurate to within 1° at any rpm so you won't have to worry about points float or "burbles" at top end speeds. The pickup is triggered by a precision reluctor that is attached to a hardened steel shaft. For increased stability, a sealed ball bearing is used to guide the shaft. Since every engine application is different, the MSD Billet distributor features an easy-to-adjust mechanical advance assembly. By simply changing the advance springs and stop bushing you can tune in 24 different advance curves.
MSD VW Billet Distributor - 8485
$499.95
Features:
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- CNC machined billet aluminum housing and Dupont Rynite base
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- No CARB Exemption Order Number
- Advance weight pins are staked and tig welded to the plate• Nylon pads ensure smooth operation of the advance weights
- Must be used with an MSD Ignition Control
- Mechanical advance assembly can be locked out for crank trigger systems
- Supplied with bolt down distributor cap and rotor
- Designed as a performance upgrade for VW Type I air cooled engines
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing
Product Specifications:
- Product Details: VW Type I (air cooled) Billet distributor requires an MSD 6 or 7-series ignition.
- Color: Gray
- Distributor Cap Included: Yes
- Distributor Type: Magnetic Pickup
- Grade Type: Performance
- Ignition Box Required: Yes
- Ignition Coil Included: No
- Ignition Rotor Included: Yes
- Makes: Volkswagen
- Part Type: Distributor
- Product Type: Distributor
