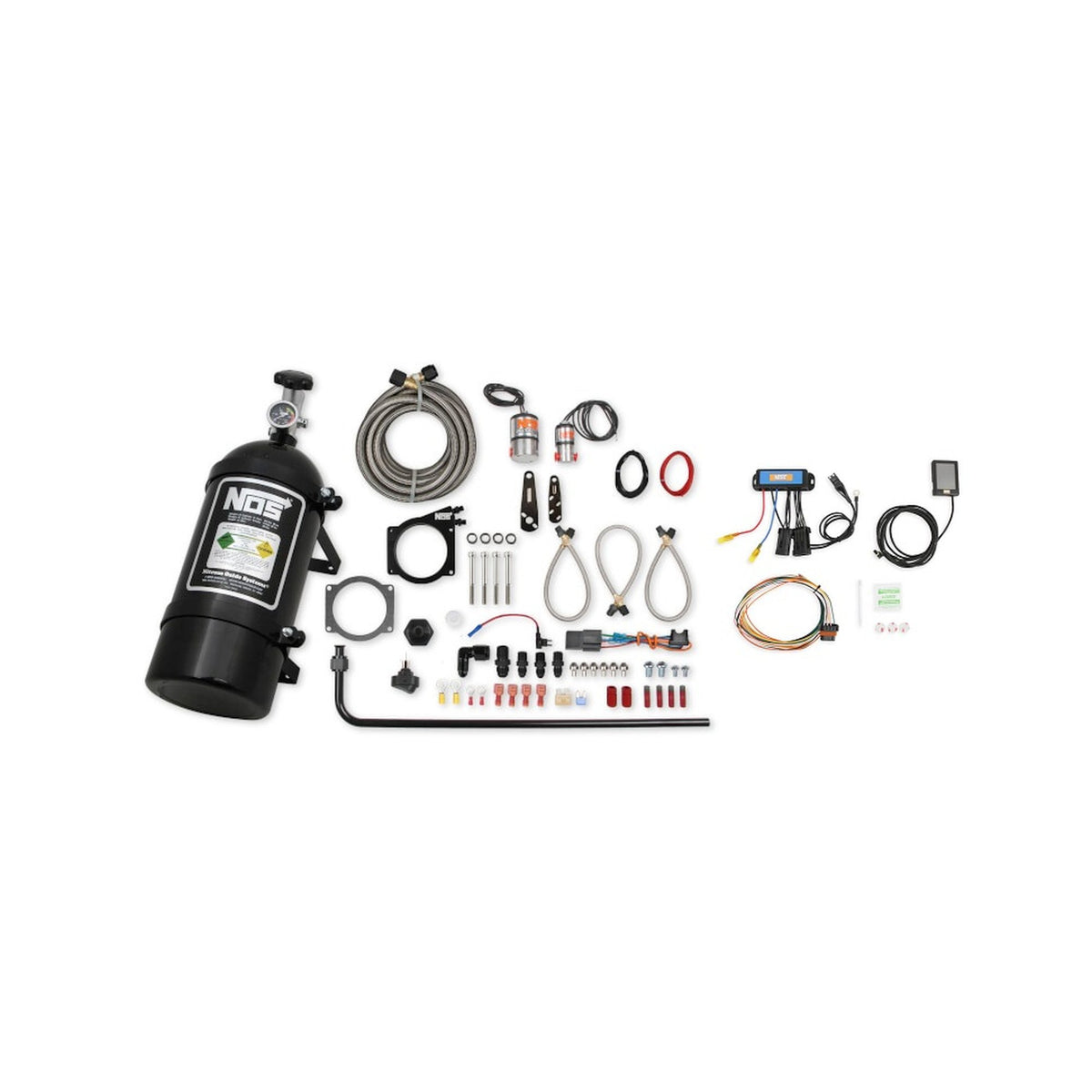

NOS Plate Wet Nitrous System - GM - 05164BNOS
$1,399.95
Skip to product information
If you are running one of the many LS based engines and would like to add up to 250 additional horsepower, NOS has a complete nitrous kit option for you.
These kits are ideal for adding a little more power to that stock engine or a lot more power to that custom built Hot Rod. Available for 4-bolt, drive-by-wire or cable operated throttle bodies in 90mm, 92mm, 102mm & 105mm plate sizes. These are "Wet" plates, meaning the additional fuel is added though the nitrous system, so there are no requirements for an injector upgrade*.
*It is important to ensure the existing fuel delivery system is adequate to support the expected power levels.
NOS Plate Wet Nitrous System - GM - 05164BNOS
$1,399.95
Features:
- Fits GM LS engines with drive-by-wire style 90mm or 92mm throttle body
- Includes jetting for 100, 125, & 150 horsepower
- Fits Holley and Sniper EFI , or MSD Atomic intake manifolds
- This wet kit provides exceptionally smooth power delivery
- Single 90mm ½ inch thick black plate between the throttle body and manifold
- Bottle is made from 6061-T6 Aluminum
- Supports up to 250 RWHP (jets purchased separately)
- Includes a 10 lb. black nitrous bottle with brackets
Product Specifications:
- Product Details: 1997-2012 GM LS 90mm or 92mm 4-Bolt Drive-By-Wire Throttle Body. Black system is adjustable up to 250 HP. Includes 10lb bottle, 92mm plate, and all installation items
- Adjustable: Yes
- Bottle Color: Black
- Bottle Included: Yes
- Bottle Material: 6061 T-6 Aluminum
- Bottle Size: 10 lb
- Bottle Valve: Super Hi-Flo
- Bracket Material: Steel
- Brackets Included: Yes
- Color: Black
- Delivery Style: EFI Spacer Plate
- Feed Line Size: 6AN
- Fuel Solenoid: Cheater
- Included Jetting Horsepower: 100, 125, 150
- Jet Sizes Included: 100, 125, 150 hp
- Jet Style: Flare
- Material: 6061-T6 Aluminum
- Max Horsepower: 250
- Nitrous Bottle Capacity: 10 lbs
- Nitrous Solenoid: Cheater
- Number of Solenoids: 2
- Part Type: Nitrous Oxide Injection System Kit
- Plate Bolt Pattern: 4 bolt
- Plate Diameter: 90 mm
- Plate Flange: GM 90mm LS 4 bolt
- Plate Height: 1/2 inch
- Plate Included: Yes
- Plate Thickness: 1/2 inch
- Product Type: Nitrous System
- Solenoid Top Cover Color: Black
- Style: Wet
- System Style: Wet
