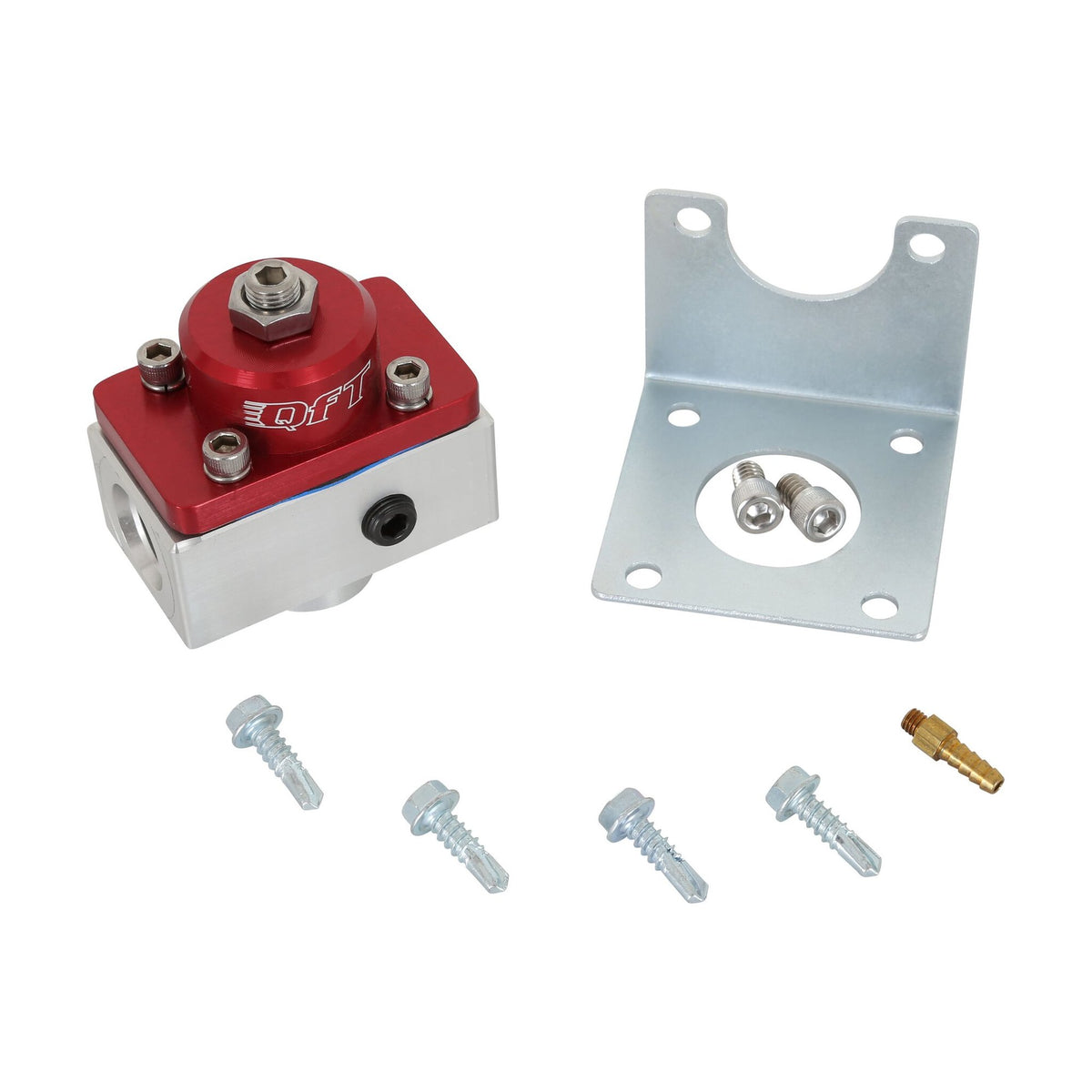

Quick Fuel Billet Bypass Regulator - 30-1900QFT
$218.95
Skip to product information
Billet Bypass Regulator - Designed for use with an electric fuel pump where fuel pressure is steadily delivered. By-Pass feature is unrestricted and anodized top has a fitting for boost referenced applications. Comes with laser cut stainless mounting bracket and hardware. #8 AN O-Ring fittings required.
Quick Fuel Billet Bypass Regulator - 30-1900QFT
$218.95
Features:
- Designed to operate within 4.5 - 9 PSI; Preset at 7 PSI
- .350" (7/20") restriction
- Can be used with gas, alcohol and E85 fuels
- Compatible with QFT™ billet fuel pressure regulator logs
- Includes an 1/8" NPT port for manifold reference
- Boost Reference 1-1
Product Specifications:
- Product Details: Alcohol compatible
- Adjustable: Yes
- Fuel Type: Gasoline
- Gauge Included: No
- Gauge Port Included: Yes
- Grade Type: Performance
- Inlet Type: 8 AN ORB
- Maximum Pressure: 9 PS
- Minimum Pressure: 4.5 PS
- Mounting Bracket Included: Yes
- Outlet Type: 8 AN ORB
- Part Type: Fuel Pressure Regulator
- Product Type: Fuel Pressure Regulator
- Rebuildable: Yes
- Vacuum Port Quantity: 1
