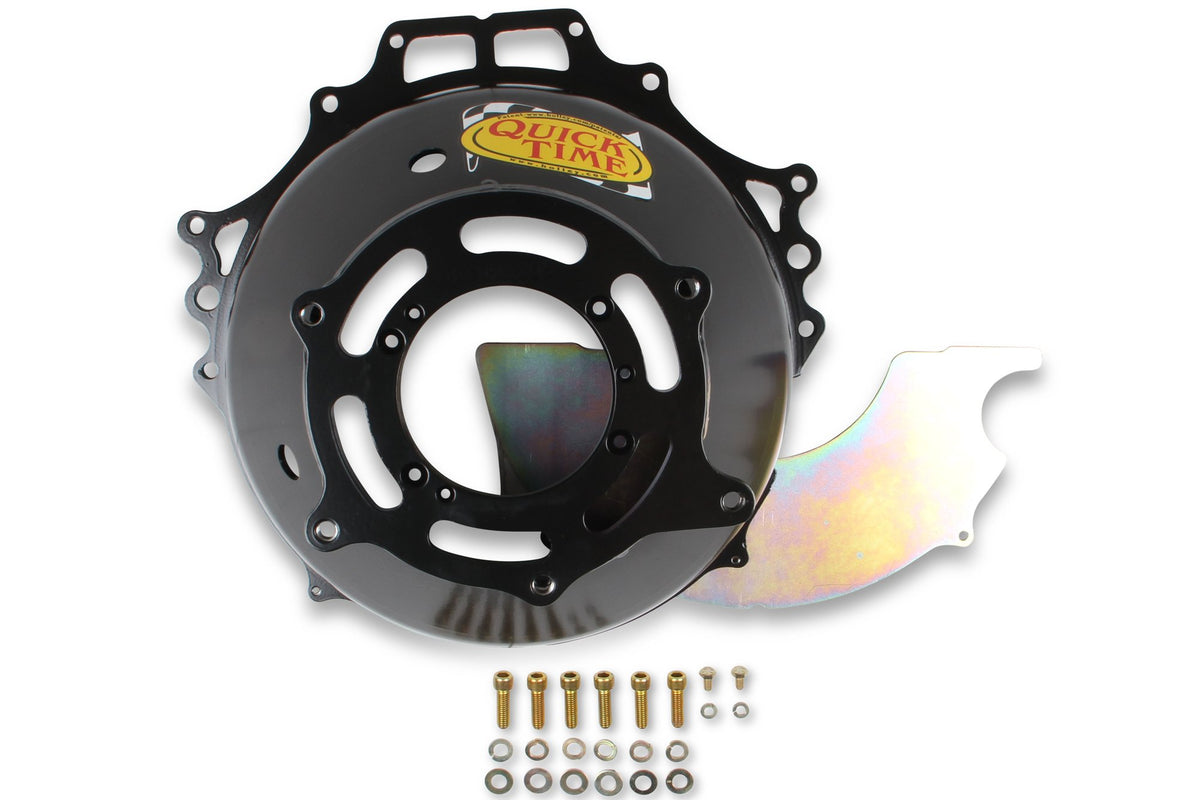

Quick Time Bellhousing - Chevrolet - RM-6010
$870.95
Skip to product information
The Quick Time RM-6010 bellhousing connects small-block and big-block Chevy engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner T10, and Tremec TKO or TXK transmissions. This bellhousing is not S.F.I. certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin-forming process which results in a very high-strength material. This high material strength allows the Quick Time bellhousings to be lightweight while maintaining the protection you desire.
Quick Time Bellhousing - Chevrolet - RM-6010
$870.95
Features:
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of Bellhousing Design & Process
Product Specifications:
- Product Details: Perfect fit for Big-Block and Small-Block Chevrolet Engines with Muncie, Jerico, Richmond, Saginaw, BW T10, TKO, or TKX Transmissions - Internal Hydraulic Bearing
- Clutch Diameter: 10.5 IN
- Clutch Operation: Hydraulic
- Color: Black
- Engine: Chevrolet Small Block Gen I, GM Big Block
- Engine Make: Chevrolet
- Engine Plate: RM-6010-C
- Finish: Semi-gloss
- Flywheel: 153 Tooth
- Grade Type: Performance
- Height: 6.29 IN
- Material: Steel
- Part Type: Transmission Bell Housing
- Patented: yes
- Product Type: Bellhousing
- SFI Approved: No
- SFI Certification: None
- Starter: Mini
- Transmission: Bert Racing, Brinn Racing, Falcon, Jerico, Muncie, Richmond, Saginaw, T10, T5 GM, TKO 500/600 GM, TKX GM
- Transmission Bore Diameter: 4.687 IN
- Transmission Type: Manual
- Weight: 18 LB
