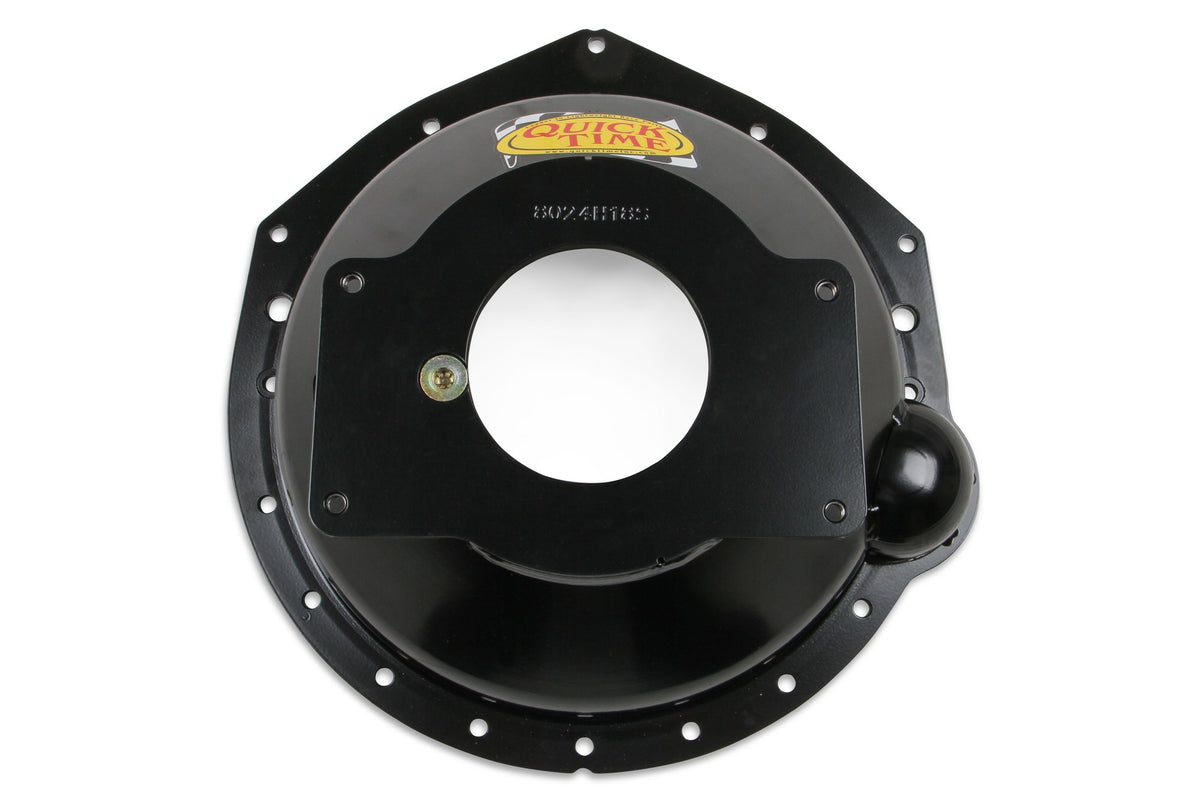

Quick Time Bellhousing - Chevrolet Small & Big Block - RM-8024
$1,299.95
Skip to product information
The Quick Time RM-8024 bellhousing connects small block and big block Chevy engines to GM NV-4500 transmission. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Quick Time Bellhousing - Chevrolet Small & Big Block - RM-8024
$1,299.95
Features:
- Precision manufacturing method permits Lakewood bellhousings to be the most dimensionally stable bellhousing available,permits less drive-train wear.
- Unique spin forming process creates high material strength while allowing a lightweight bellhousing design.
- Designed for Chevy Small Block and Big Block engines with GM NV4500 transmissions for proper compatibility.
- SFI 6.1 Certified meets certification requirements for applicable performance and racing use.
Product Specifications:
- Product Details: Perfect fit for Chevy Small & Big Block to GM NV4500 Transmission
- Clutch Operation: Mechanical
- Color: Black
- Engine: Chevrolet Big Block Mark IV
- Engine Make: Chevrolet
- Engine Plate: RM-6023-C
- Flywheel or Flexplate: 168 Tooth
- Grade Type: Performance
- Height: 6.4 IN
- Material: Steel
- Part Type: Transmission Bell Housing
- Patented: yes
- Product Type: Bellhousing
- SFI Approved: Yes
- SFI Certification: 6.1
- Transmission: GM NV4500
- Transmission Bore Diameter: 5.12 IN
- Transmission Type: Manual
- Weight: 22 LB
