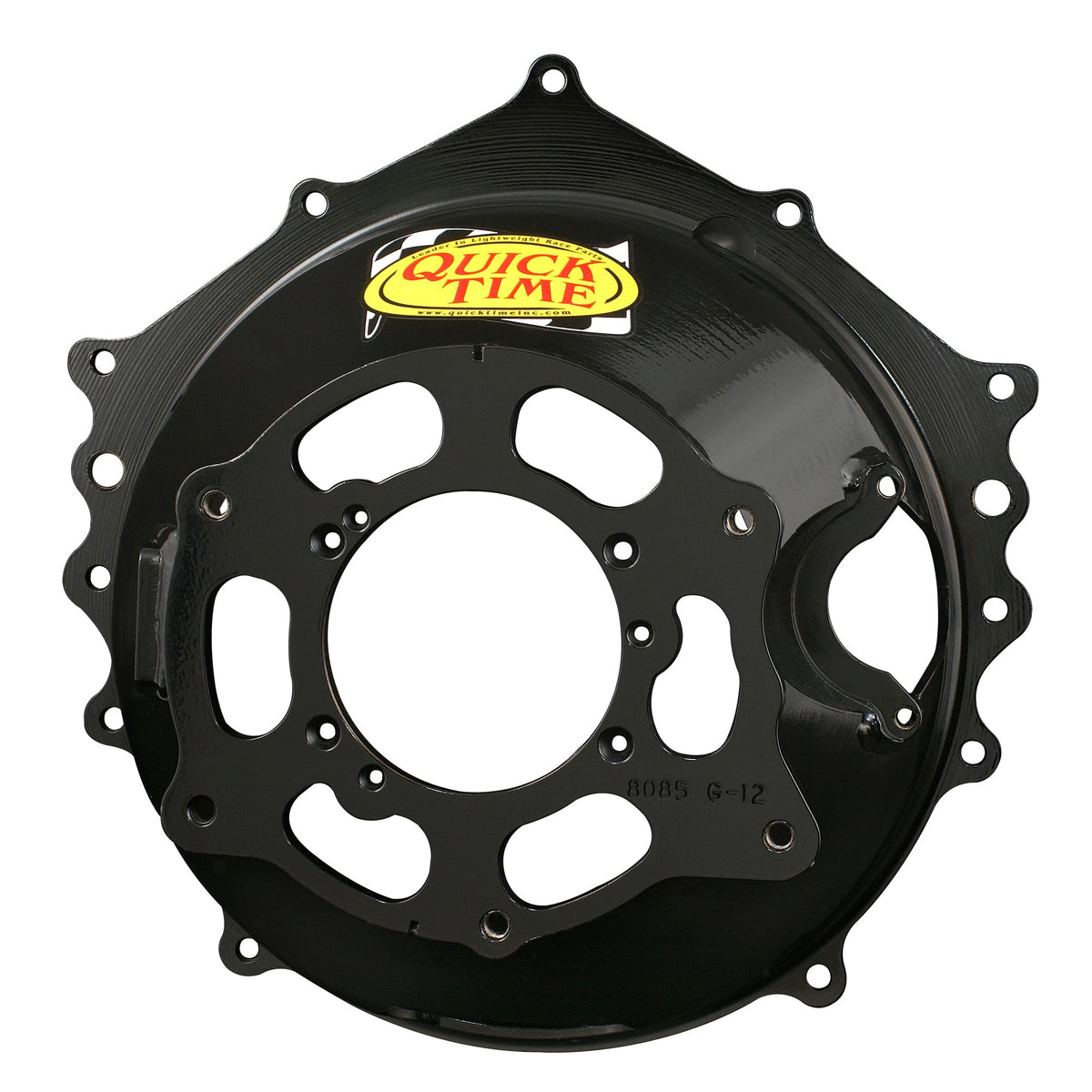

Quick Time Bellhousing - Chevy Big/Small Block Engine - Reverse-Mount Starters - RM-8085
$1,299.95
Skip to product information
Engine to Munice/Jerico-style Transmission Bellhousing designed for NASCAR/ARCA/Circle Track. Full Engine Plate and Grade 8 Bolts included. Tilton or quartermaster reverse mount starter. No Bellhousing deflection.
Must use 110 tooth flywheel with this bellhousing.
Quick Time Bellhousing - Chevy Big/Small Block Engine - Reverse-Mount Starters - RM-8085
$1,299.95
Features:
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of Bellhousing Design & Process
Product Specifications:
- Product Details: Perfect Fit for Big Block/Small Block/LS Chevys with TKX/TKO/Muncie/Jerico-Style Transmissions and Reverse-Mount Starters
- Clutch Diameter: Up to 10 1/2 Clutch Disc
- Clutch Operation: Hydraulic
- Color: Black
- Engine: Chevrolet Small Block Gen I, GM Big Block, GM Gen III/IV (LS)
- Engine Make: Chevrolet
- Engine Plate: RM-8085-C
- Flywheel: 110 Tooth
- Grade Type: Performance
- Height: 6.313 IN
- Material: Steel
- Part Type: Transmission Bell Housing
- Patented: yes
- Product Type: Bellhousing
- SFI Approved: No
- SFI Certification: None
- Transmission: Bert Racing, Brinn Racing, Falcon, Jerico, Muncie, Richmond, Saginaw, T10, TKO 500/600 GM, TKX GM
- Transmission Bore Diameter: 4.685 IN
- Transmission Type: Manual
- Weight: 18 LB
