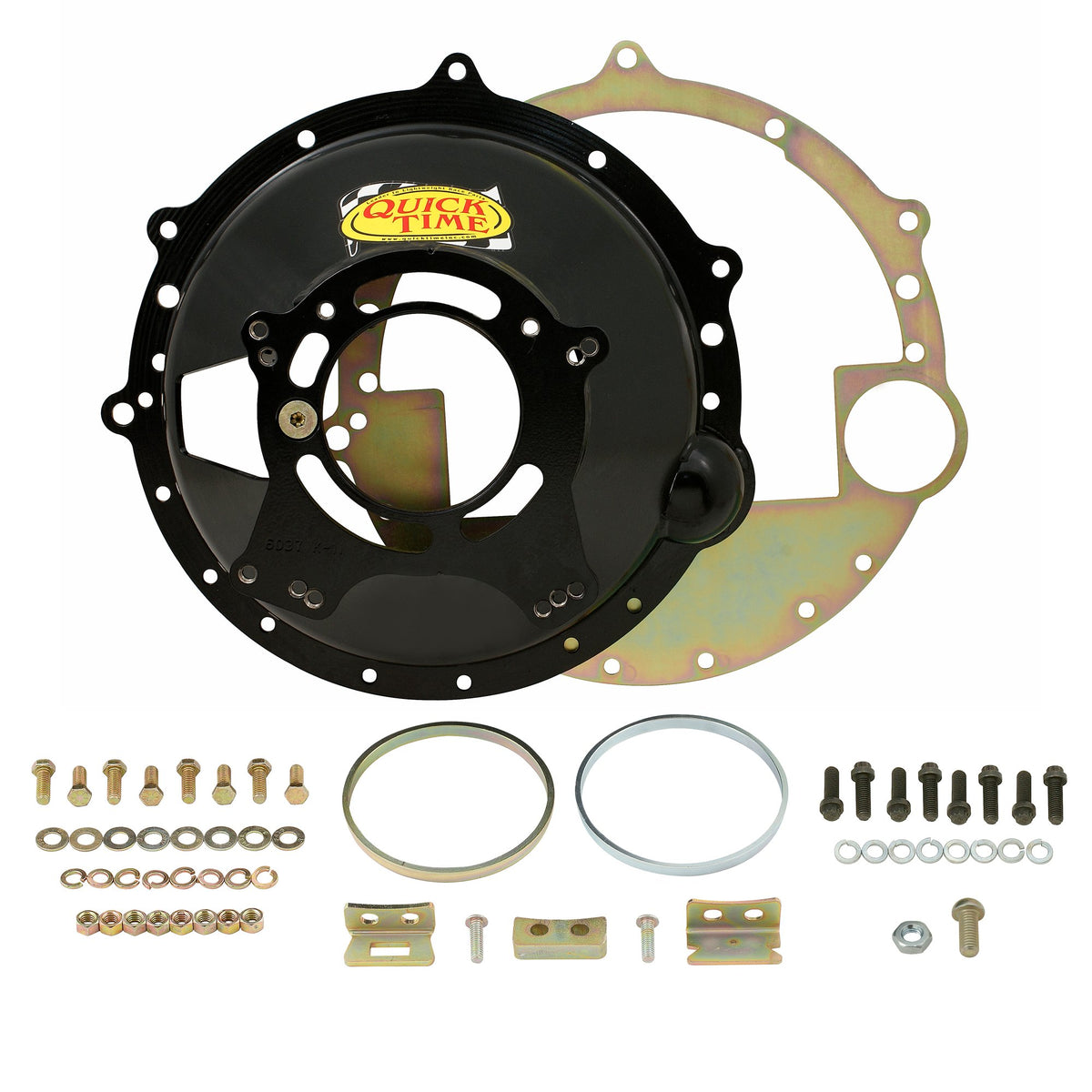

This Quick Time's bellhousing is designed for street, strip and circle track applications. Built from high quality grade steel, the cone is spun not stamped, and rolled making this bellhousing dimensionally stable and accurate. This bellhousing will fit all Chevy LS series engines to Ford TKO 500-600, T5 Mustang, TR3550, and Jerico 4/5 speed transmissions. 6.925 in deep this bellhousing will clear 168 tooth flywheel with 11 in clutch. Universal transbore is 4.685/4.910 in. Weighs 22 pounds. S.F.I. 6.1 certified. Pivot ball, block plate and Grade 8 hardware included. Other applications available.
Quick Time Bellhousing - Chevy LS - RM-6037
$1,299.95
Features:
- Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel. Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of Bellhousing Design & Process
Product Specifications:
- Product Details: Perfect fit for Chevy LS engines with Ford TKO 500/600 , Ford TR3550, or Ford T5 transmissions, can also be used with late model LT1 and LT4 engines.
- Clutch Diameter: 11 IN
- Clutch Operation: Mechanical or Hydraulic
- Color: Black
- Engine: Chevy LT1, Chevy LT4, GM Gen III/IV (LS)
- Engine Make: Chevrolet
- Engine Plate: RM-6037-C
- Flywheel: 153/168 Tooth
- Grade Type: Performance
- Height: 6.925 IN
- Material: Steel
- Part Type: Transmission Bell Housing
- Patented: yes
- Product Type: Bellhousing
- SFI Approved: Yes
- SFI Certification: 6.1
- Starter: OE
- Transmission: T5 Ford 1983-1993, TKO 500/600 Ford, TKX Ford, TR3550
- Transmission Bore Diameter: 4.85 / 4.91 / 5.12 IN
- Transmission Type: Manual
- Weight: 22 LB
