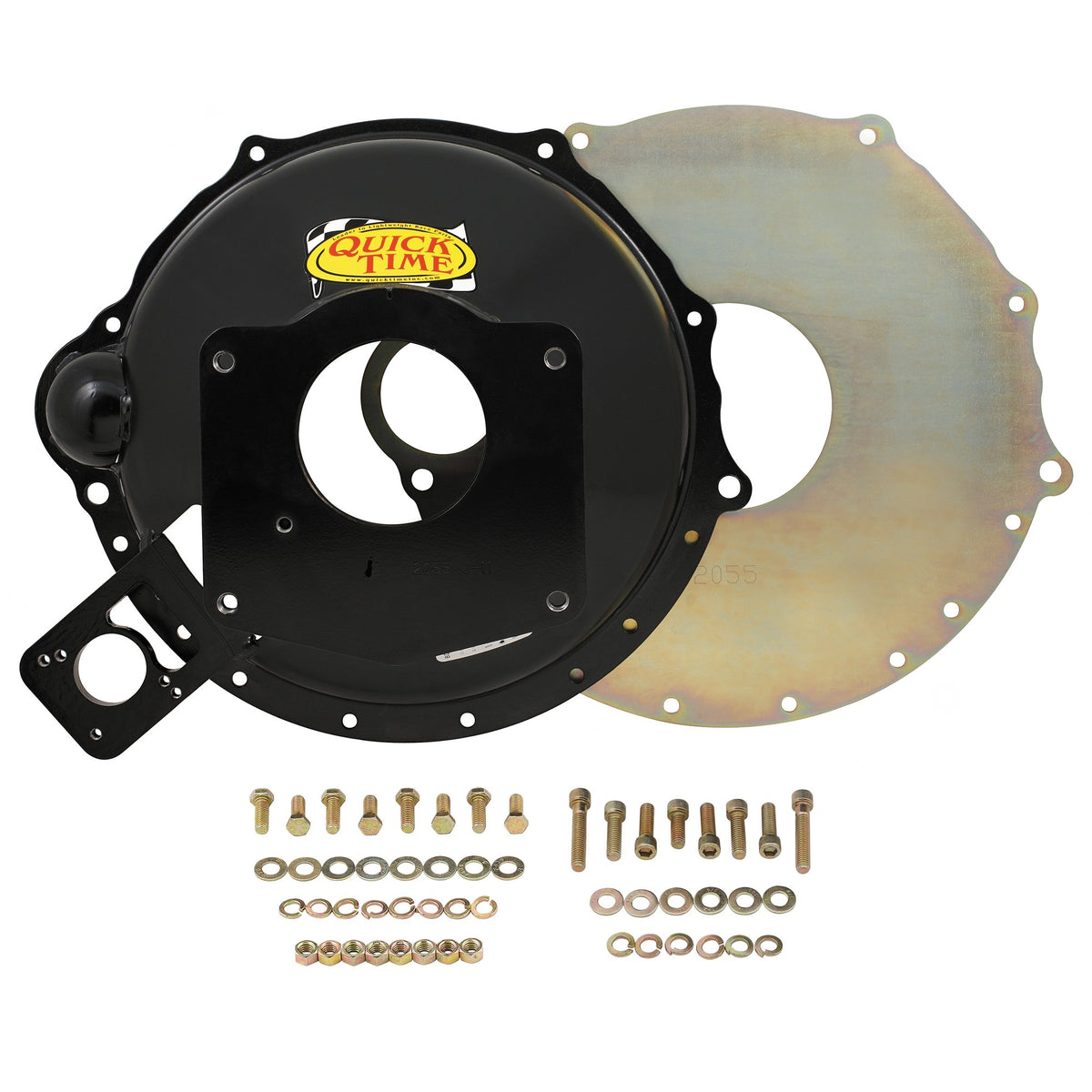

Quick Time Bellhousing - Cummins Diesel Engine - RM-2055

Features:

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100% built in the USA
• Patent on 16 points of Bellhousing Design & Process

Product Specifications:

• Product Details: Perfect fit for Cummins Diesel engines with Getrag transmissions
• Clutch Diameter: 12.25" Clutch Disc
• Clutch Operation: Hydraulic
• Color: Black
• Engine: Cummins Diesel
• Engine Make: Cummins
• Engine Plate: RM-2055-C
• Finish: Powdercoated
• Flywheel: 152 Tooth
• Grade Type: Performance
• Height: 7.476 IN
• Material: Steel
• Part Type: Transmission Bell Housing
• Patented: yes
• Product Type: Bellhousing
• SFI Approved: Yes
• SFI Certification: 6.1
• Transmission: Getrag
• Transmission Bore Diameter: 4.851 IN
• Transmission Type: Manual
• Weight: 26 LB
