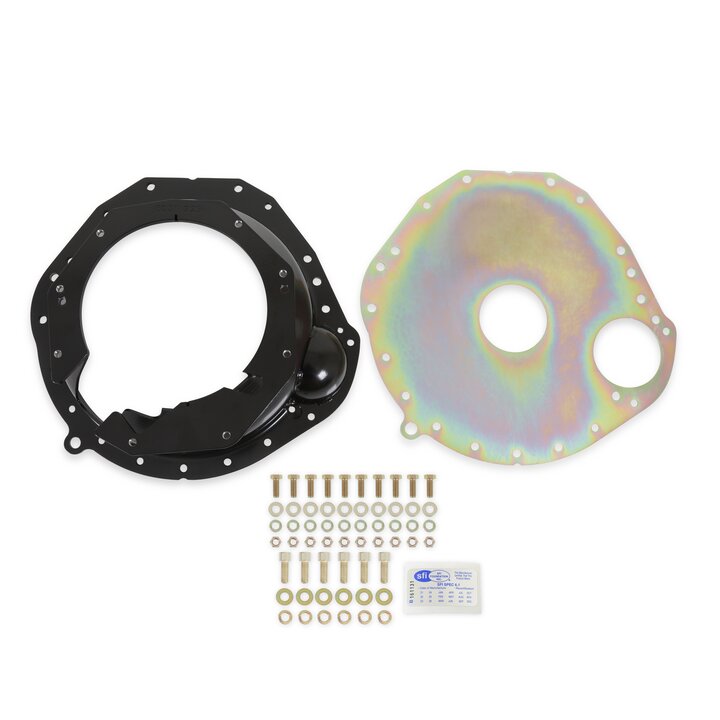

Quick Time Bellhousing - Ford 5.0/5.8L - RM-8031
$1,075.95
Skip to product information
The Quick Time RM-8031 bellhousing connects small block Ford engines to T-56 Ford transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The clutch fork opening on this bellhouisng is at the 7:00 position. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Quick Time Bellhousing - Ford 5.0/5.8L - RM-8031
$1,075.95
Features:
- Patent on 16 points of Bellhousing Design & Process
- The unique spin forming process creates a high strength material while allowing a lightweight bellhousing design.
- The clutch fork opening is positioned at 7:00 for compatibility with the specified cable clutch configuration.
- SFI 6.1 Certified meets certification requirements for applicable performance and racing use.
Product Specifications:
- Product Details: Typical fit for 5.0/5.8L Fords with T56 Ford transmissions in 94+ SN95 Mustang Utilizing Cable Clutch - Fork positioned at 7:00
- Clutch Operation: Hydraulic
- Color: Black
- Engine: Ford 289, Ford 302, Ford 351C, Ford 351W, Ford Small Block
- Engine Make: Ford
- Engine Plate: RM-8031-C
- Finish: Semi-gloss
- Flywheel: 157 Tooth
- Grade Type: Performance
- Height: 5.332
- Material: Steel
- Part Type: Transmission Bell Housing
- Patented: yes
- Product Type: Bellhousing
- SFI Approved: Yes
- SFI Certification: 6.1
- Transmission: T56 Ford
- Transmission Type: Manual
- Weight: 20 LB
