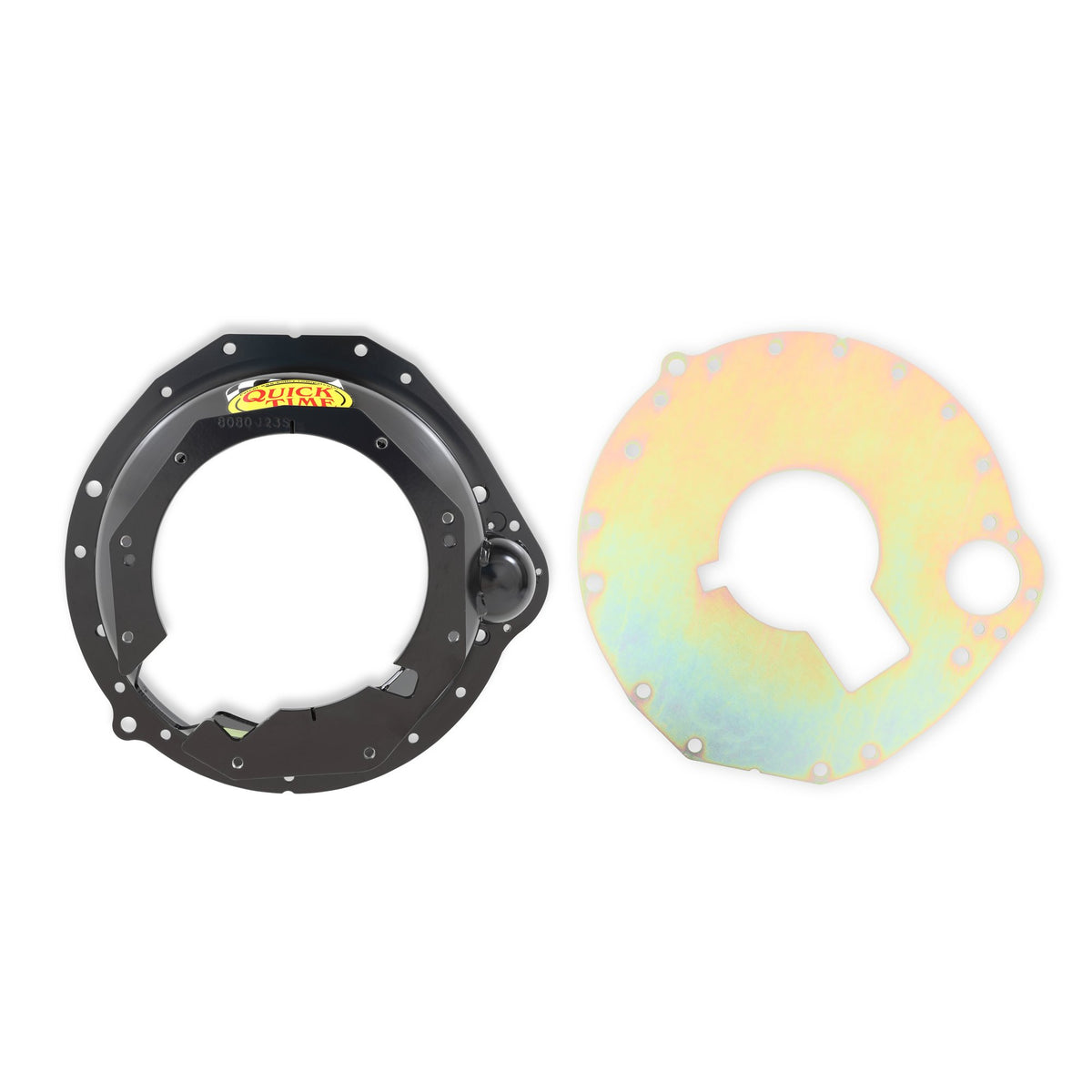

Quick Time Bellhousing - Ford Modular - RM-8080
$1,126.95
Skip to product information
The QuickTime RM-8080 bellhousing fits 4.6/5.0/5.4/5.8/6.2L Ford Modular Engines to Ford T-56 (and Magnum) transmissions. The clutch fork position on this bellhousing is at the 7:00 position. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The QuickTime bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the QuickTime bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Quick Time Bellhousing - Ford Modular - RM-8080
$1,126.95
Features:
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of Bellhousing Design & Process
Product Specifications:
- Product Details: Perfect Fit for 4.6/5.0/5.4/5.8/6.2L Ford Modular and 7.3L Godzilla Engines with T-56 Ford Transmissions - Fork Positioned at 7:00
- Clutch Operation: Mechanical
- Color: Black
- Engine: Ford 5.0L Coyote, Ford 5.4 Modular, Ford 5.8 Modular, Ford 7.3L Godzilla, Ford Mod Motor
- Engine Make: Ford
- Engine Plate: RM-6081-C
- Finish: Semi-gloss
- Flywheel: 164 Tooth
- Grade Type: Performance
- Height: 5.322
- Material: Steel
- Part Type: Transmission Bell Housing
- Patented: yes
- Product Type: Bellhousing
- SFI Approved: Yes
- SFI Certification: 6.1
- Transmission: T56 Ford
- Transmission Type: Manual
- Weight: 20 LB
