Quick Time Bellhousing - Ford Modular - RM-8084
$1,229.95
Skip to product information

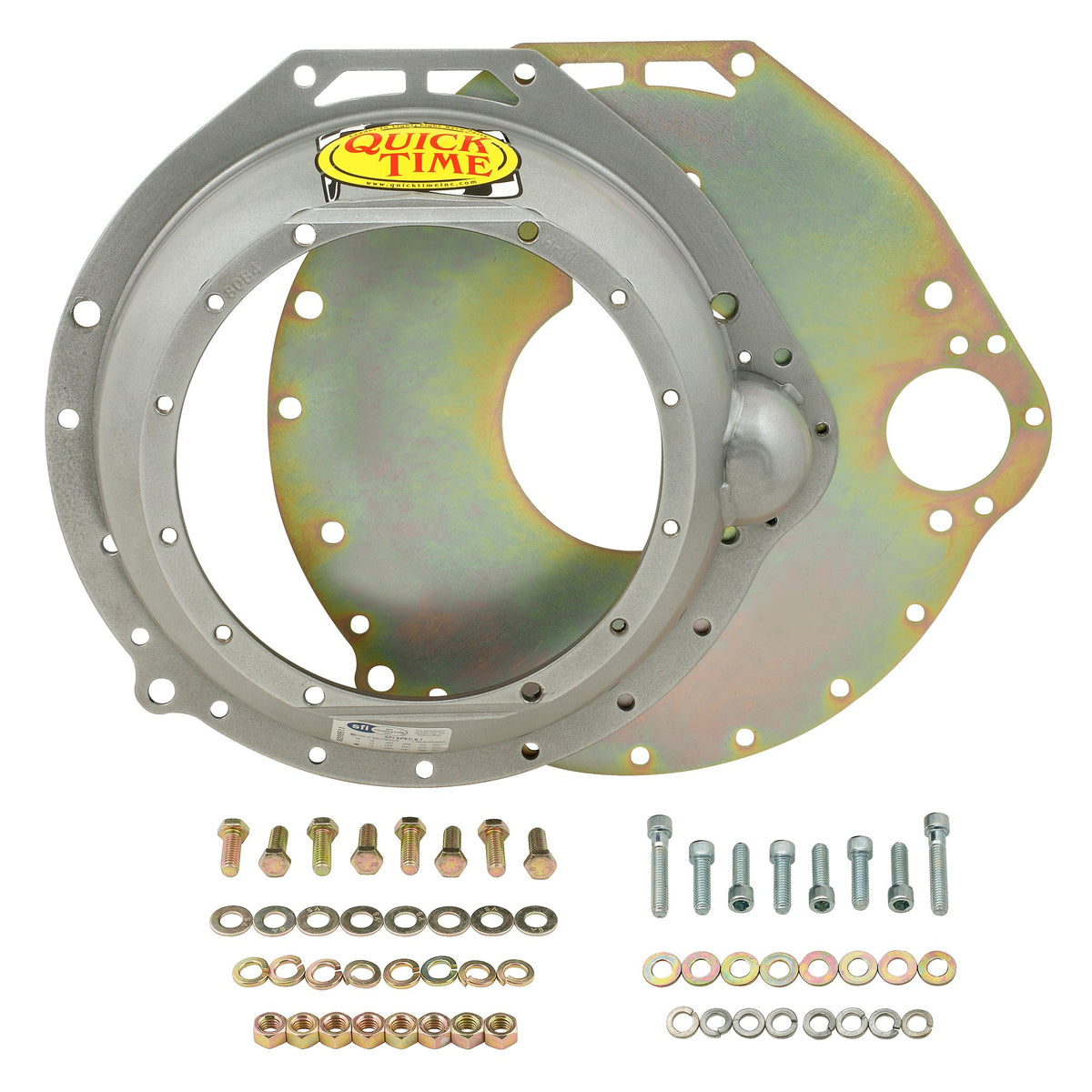

The Quick Time RM-8084 bellhousing connects Coyote 4.6L / 5.0L / 5.4L to ZF Transaxle transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Quick Time Bellhousing - Ford Modular - RM-8084
$1,229.95
Features:
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- SFI 6.1 Certified meets certification requirements used by many sanctioning bodies for demanding racing applications.
Product Specifications:
- Product Details: Perfect fit for 4.6/5.0/5.4/5.8/6.2L Ford Modular engines with ZF transaxle transmissions
- Clutch Operation: Automatic
- Color: Black
- Engine: Ford 5.0L Coyote, Ford 5.4 Modular, Ford 5.8 Modular, Ford 7.3L Godzilla, Ford Mod Motor
- Engine Make: Ford
- Engine Plate: RM-8084-C
- Flywheel: 164 Tooth
- Grade Type: Performance
- Height: 4.497
- Material: Steel
- Part Type: Transmission Bell Housing
- Patented: yes
- Product Type: Bellhousing
- SFI Approved: Yes
- SFI Certification: 6.1
- Transmission: ZF
- Transmission Bore Diameter: 10.875 IN
- Transmission Type: Manual/Automatic
- Weight: 20 LB
