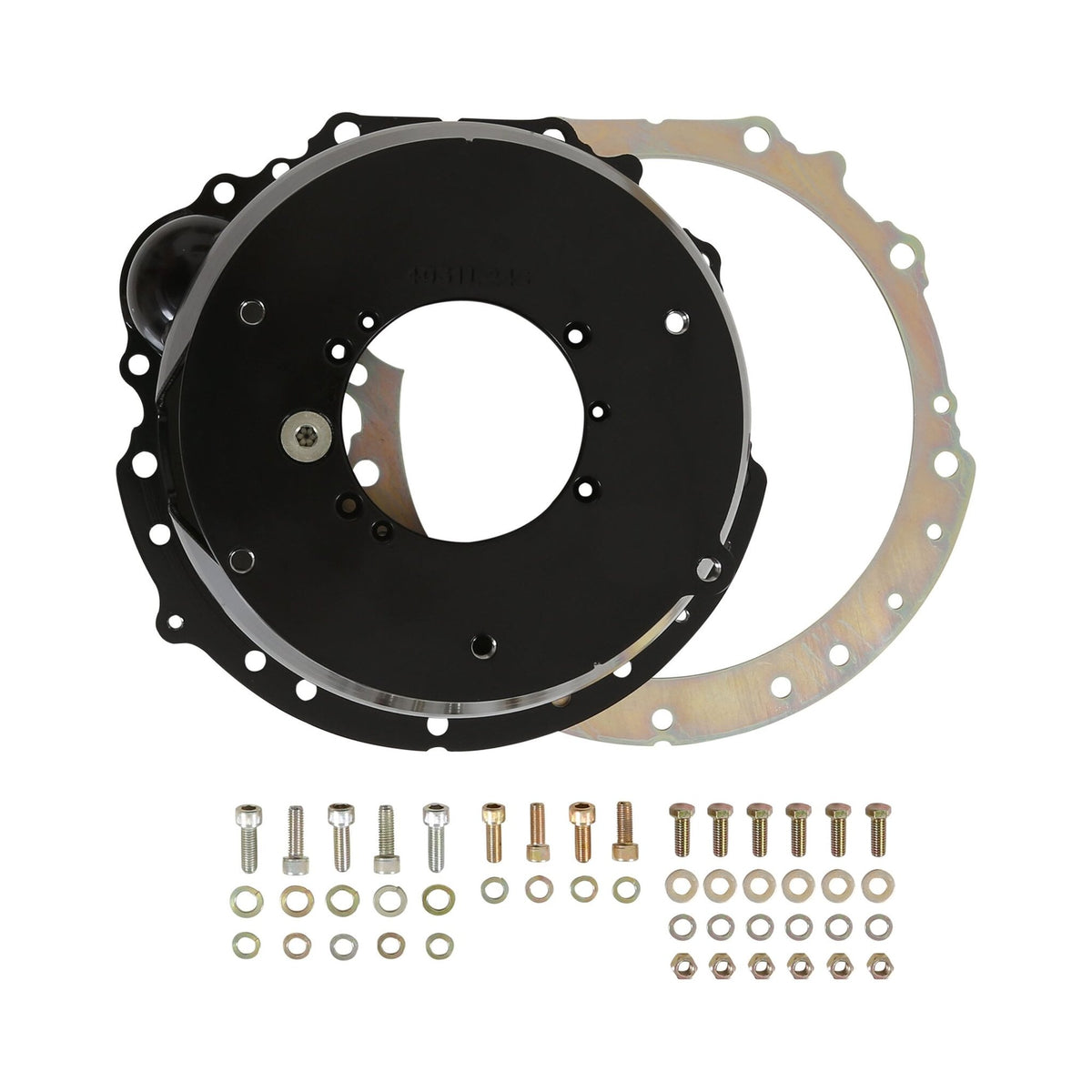

Quick Time Bellhousing - Toyota 1JZ or 2JZ - RM-4031
$1,126.95
Skip to product information
This Quick Time lightweight steel bellhousing fits Toyota 1JZ or 2JZ to Muncie / Jerico transmission.
Transmission: Falcon, Muncie, Jerico, Saginaw, Richmond, Bert Racing, Brinn Racing, T10, TKO 500/600, TKX
Quick Time Bellhousing - Toyota 1JZ or 2JZ - RM-4031
$1,126.95
Features:
- Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- 100% built in the USA
- Patent on 16 points of Bellhousing Design & Process
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- *Installation Note: RM-4031 needs a pilot bearing installed in the flywheel, as opposed to the crankshaft
Product Specifications:
- Product Details: Perfect Fit for Toyota 1JZ or 2JZ with TKX, TKO, and Muncie/Jerico-Style Transmissions
- Clutch Operation: Hydraulic
- Color: Black
- Engine: Toyota 1JZ, Toyota 2JZ
- Engine Make: Toyota
- Engine Plate: RM-4031-C
- Finish: Powdercoated
- Flywheel: None
- Grade Type: Performance
- Height: 6.4 IN
- Material: Steel
- Part Type: Transmission Bell Housing
- Patented: yes
- Product Type: Bellhousing
- SFI Approved: Yes
- SFI Certification: 6.1
- Transmission: Bert Racing, Brinn Racing, Falcon, Jerico, Muncie, Richmond, Saginaw, T10, TKO 500/600 GM, TKX GM
- Transmission Bore Diameter: 4.685 IN
- Transmission Type: Manual
- Weight: 22 LB
