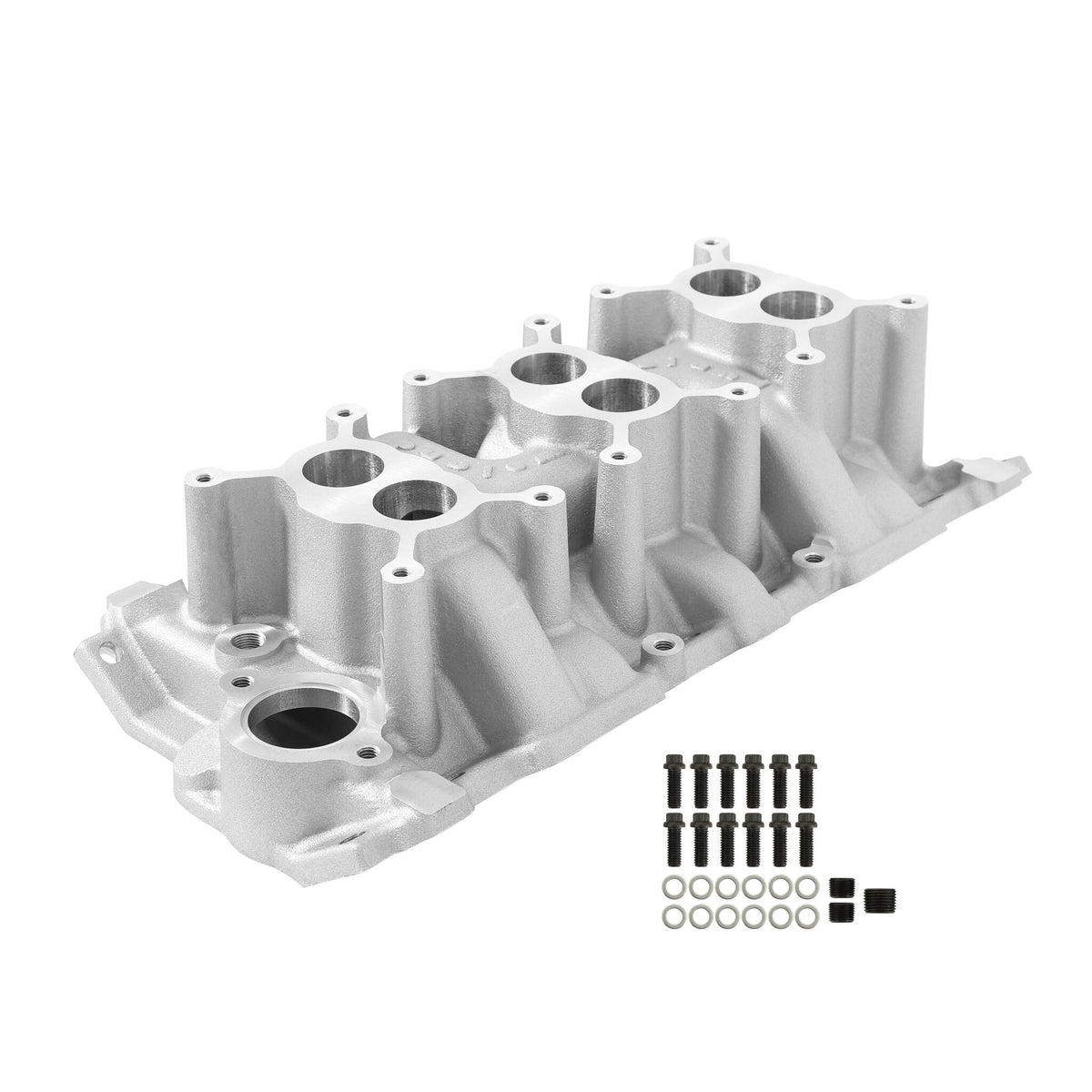

The Weiand 3x2 Dual Plane intake manifold is a precision CNC machined dual plane design that provides excellent low to mid range power and torque. It is designed to accept Holley 2300 flanged 2bbl carburetors.
This intake can also be purchased as part of a full three deuce kit for small block Chevys part numbers 300-521 or 300-522 which include intake, carburetors, fuel line, linkage and air cleaners.
The world famous Holley Tri Power is legendary in Chevrolet circles! They were the ultimate power statement when they came factory on cars like the 1967 427 Corvette. And, NOW you can have the same look on your SB Chevy! Perfect for muscle cars, street rods, classic hot rods, rat rods, trucks and more!
Weiand 3x2 Dual Plane Intake- Chevy Small Block V8 - 7550
$799.95
Features:
- Port Size: 1.87” height 1.16" width
- Power band: Idle-5500 RPM
- Precision CNC machining
- Holley 2300 2bbl Carburetor flange
- Satin (as cast) finish for and even surface texture
Product Specifications:
- Product Details: Street Warrior™ Intake Manifold non/EGR 262ci-400ci, 1955-1986 Cylinder Heads
- Basic Operating RPM Range: 800-5500 RPM
- Carburetor Flange: Holley 2300
- Carburetor Quantity: 3
- Carburetor Studs Included: No
- CNC Ported: No
- Color: Natural
- Construction: Cast
- Cylinder Head Port Shape: Rectangle
- Deck Height: 9.025 IN
- EGR Port: No
- Engine: Chevrolet Small Block Gen I
- Flange Style: Holley 2300
- Fuel Injectors Included: No
- Fuel Rail(s) Included: No
- Fuel System Type: Carb
- Gasket Or Seal Included: No
- Grade Type: Performance
- Intake Port Gasket(s) Included: No
- Manifold Type: Mid Rise
- Material: Aluminum
- Nitrous Bung(s) Included: No
- Part Type: Engine Intake Manifold
- Plenum Finish: Cast
- Product Type: Intake Manifold
- Removable Runners: No
- Removable Top/Lid: No
- Single Or Dual Plane Type: Single
- Throttle Body Bore Diameter: 1.5 IN
- Throttle Body Gasket Included: No
- Throttle Body Included: No
- Vacuum Ports: No
