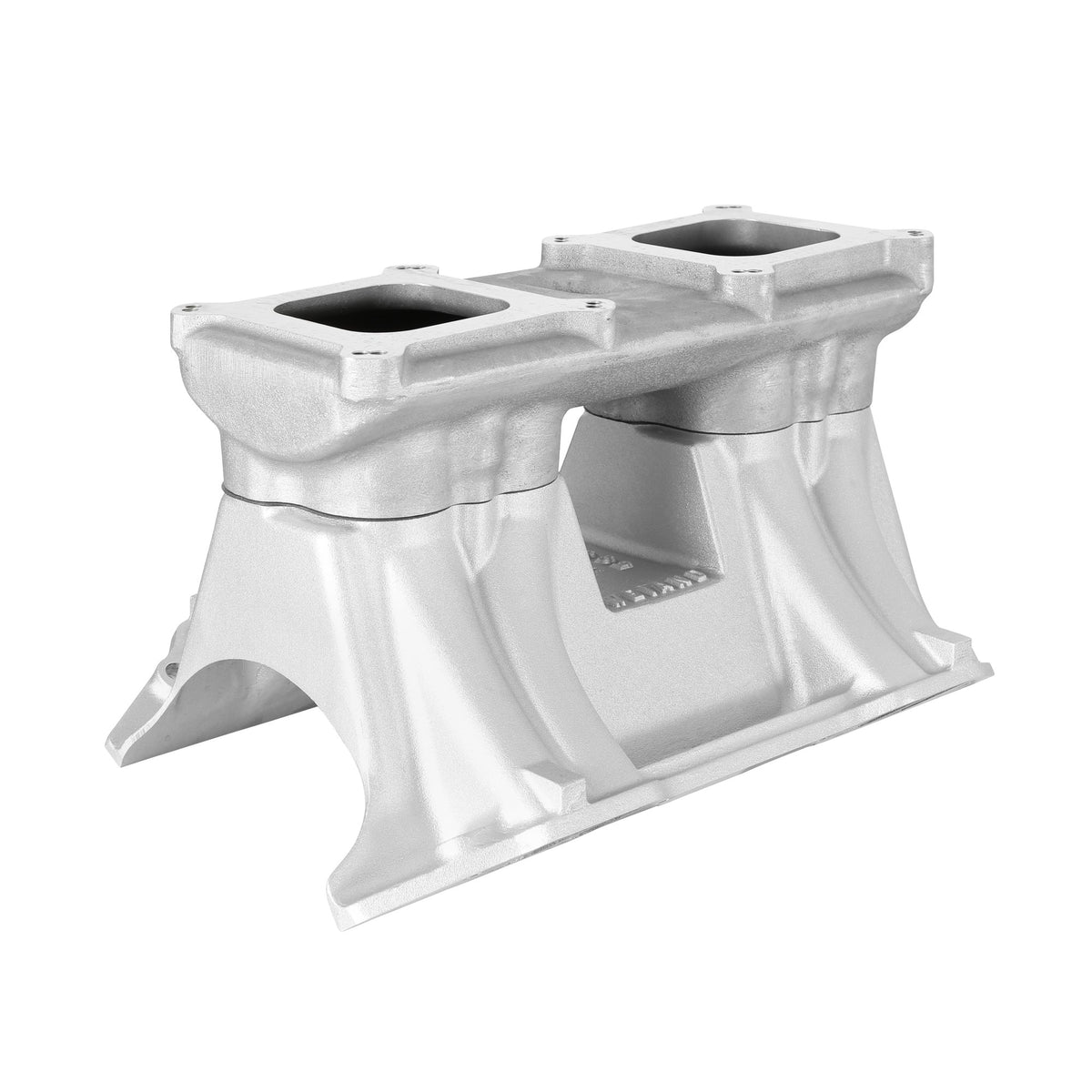

Weiand Hi-Ram Intake - Chrysler Big Block V8 - 1987WND
$727.95
Skip to product information
This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling.
We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand!
Weiand Nostalgia series intakes are proudly cast and machined in the USA.
HI-RAM SERIES: These tunnel ram manifolds are used primarily in drag racing, tractor/truck pulls and performance marine applications where high RPM performance is required. The effective RPM range is between 2,500 to 8,000 RPM. The WEIAND Hi-Ram, with it''s patented D-shaped port runners and large plenum chamber, provides optimum velocity of the air/fuel mixture to the cylinder head intake ports. For maximum performance in a naturally aspirated competition application, the WEIAND Hi-Ram is the manifold of choice!
The manufacturer stands behind every Nostalgia Series intake with a satisfaction guarantee.
Weiand Hi-Ram Intake - Chrysler Big Block V8 - 1987WND
$727.95
Features:
- Port Size: 2.14” height 1.12" width
- Square flange carburetor mounting
- 2800-8000 RPM power band
- Weiand Nostalgia Series Intake Manifold
- 2 x 4 carburetor top
- Carb Flange Center-To Center 9-11/16"
- Special D-shaped port runner design
- Large volume plenum
- Height: Front 9.50", Rear 10.31"
Product Specifications:
- Product Details: Hi-Ram Intake Manifold 413, 426 Wedge, 440 V8
- Basic Operating RPM Range: 2500-8000 RPM
- Carburetor Flange: 4150 Square Bore
- Carburetor Quantity: 2
- Carburetor Studs Included: No
- CNC Ported: No
- Color: Natural
- Construction: Cast
- Cylinder Head Port Shape: Rectangle
- Deck Height: 10.725 IN
- EGR Port: No
- Engine: Chrysler Big Block V8
- Flange Style: 4150 Square Bore
- Front Maximum Height: 9.5 IN
- Fuel Injectors Included: No
- Fuel Rail(s) Included: No
- Fuel System Type: Carb
- Gasket Or Seal Included: No
- Grade Type: Performance
- Intake Port Gasket(s) Included: No
- Manifold Type: Hi-Ram
- Material: Aluminum
- Nitrous Bung(s) Included: No
- Plenum Finish: Cast
- Product Type: Intake Manifold
- Rear Maximum Height: 10.31 IN
- Removable Runners: No
- Removable Top/Lid: No
- Single Or Dual Plane Type: Single
- Throttle Body Bore Diameter: 3.6 IN
- Throttle Body Gasket Included: No
- Throttle Body Included: No
- Vacuum Ports: Yes
