Weiand Oil Pan Kit- Fabricated - 5022WND
$288.95
Skip to product information
Save Time and aggravation with these money saving Fabricated oil pan kits!
Each kit packages everything you need to get the job of changing an oil pan done.

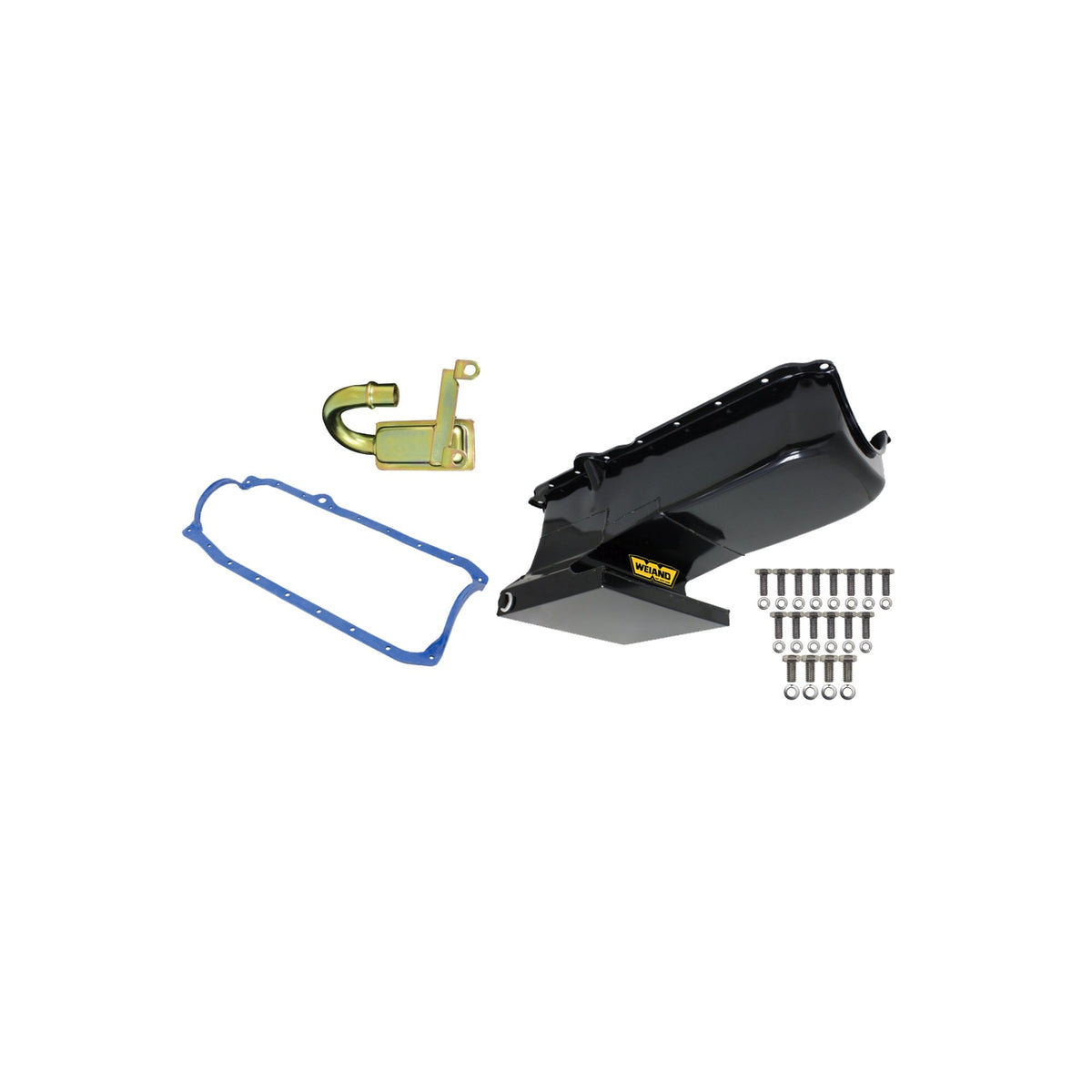

Components included in each kit include:
• Application specific oil pan
• Oil pan gasket
• Oil pump pickup
• Pan mounting bolt kit
Weiand Oil Pan Kit- Fabricated - 5022WND
$288.95
Features:
- Trap door baffles keep oil under control during hard acceleration and cornering
- Increased oil capacity to keep high performance engine oil systems fed properly
- Pans available in additional finishes
- Kit includes Pan, Pump Pickup, Pan Gasket, and pan mounting bolt kit
Product Specifications:
- Product Details: Oil Pan Kit 6QT- Black Painted Finish - 1962-1967 Chevy II equipped with a 1986/2002 Small Block Chevy (Drag Racing)
- Application: 1962-1967 Chevy II (w/ 86/02 SBC)
- Baffled: Yes
- Capacity: 6 QT
- Color: Black
- Crank Scraper Included: No
- Dipstick Location: Passenger
- Engine: GM Small Block Chevy
- Finish: Black
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Material: Stamped Steel
- Oil Pan Capacity: 6.0 Quarts
- Oil Pan Depth: 8.125
- Oil Pan Sump Length: 9.25
- Oil Pan Sump Width: 11.375
- Oil Pan Type: Fabricated
- Oil System Capacity (w/ filter): 6 QT
- Part Type: Engine Oil Pan
- Pickup Included: Yes
- Product Type: Oil Pan Kit
- Sump Location: Rear
- Sump Type: Wet
- Turbo Oil Drainback: No
- Windage Tray Included: No
