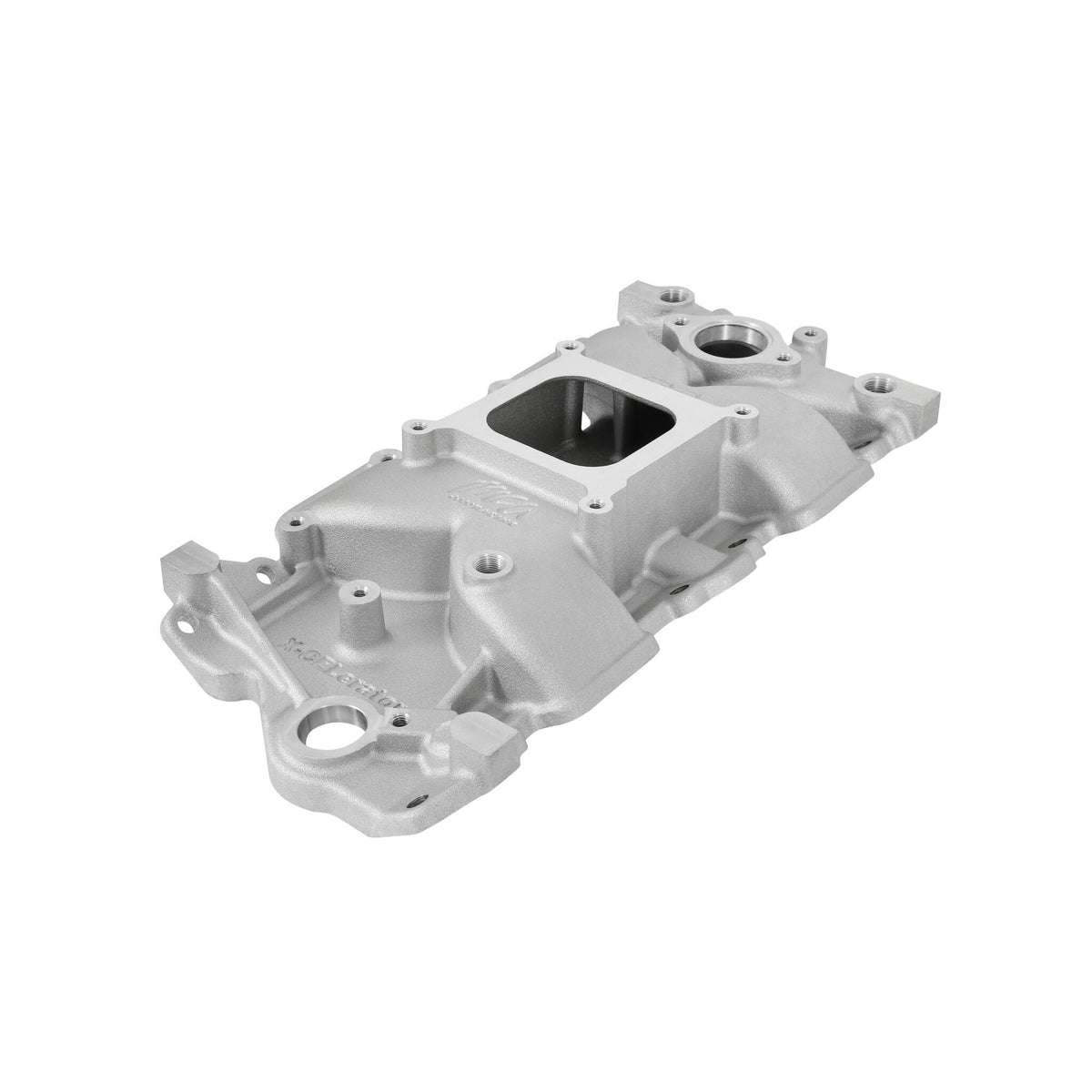

Weiand X-CELerator Intake - Chevy Small Block V8 - IMCA - 7547-1
$299.95
Skip to product information
This Weiand X-CELerator manifold was specifically designed with the IMCA racer in mind. It is fully legal for use in IMCA Stock Car and Sportmod Competition!
We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand!
Weiand Nostalgia series intakes are proudly cast and machined in the USA.
This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling.
The manufacturer stands behind every Nostalgia Series intake with a satisfaction guarantee.
Weiand X-CELerator Intake - Chevy Small Block V8 - IMCA - 7547-1
$299.95
Features:
- Weiand Nostalgia Series Intake Manifold
- Single Plane
- Power band: 2500-7000 RPM
- IMCA Approved
- Height: Front 3.09", Rear 4.06"
- Square Carburetor Mounting Flange
- Port Size: 1.85” height 1.15" width
Product Specifications:
- Product Details: X-CELerator Intake Manifold IMCA Approved 1957-1986 262ci-400ci, 1987-later with Aluminum Heads, IMCA Legal
- Barrels: 4
- Basic Operating RPM Range: 2500-7000 RPM
- Carburetor Flange: 4150 Square Bore
- Carburetor Quantity: 1
- Carburetor Studs Included: No
- CNC Ported: No
- Color: Natural
- Construction: Cast
- Cylinder Head Port Shape: Rectangle
- Deck Height: 9.025 IN
- EGR Port: No
- Engine: Chevrolet Small Block Gen I
- Flange Style: 4150 Square Bore
- Front Maximum Height: 3.09 IN
- Fuel Injectors Included: No
- Fuel Rail(s) Included: No
- Fuel System Type: Carb
- Gasket Or Seal Included: No
- Grade Type: Performance
- Intake Port Gasket(s) Included: No
- Manifold Type: High Rise
- Material: Aluminum
- Nitrous Bung(s) Included: No
- Part Type: Engine Intake Manifold
- Plenum Finish: Cast
- Product Type: Intake Manifold
- Rear Maximum Height: 4.06 IN
- Removable Runners: No
- Removable Top/Lid: No
- Single Or Dual Plane Type: Single
- Throttle Body Bore Diameter: 3.6 IN
- Throttle Body Gasket Included: No
- Throttle Body Included: No
- Vacuum Ports: Yes
